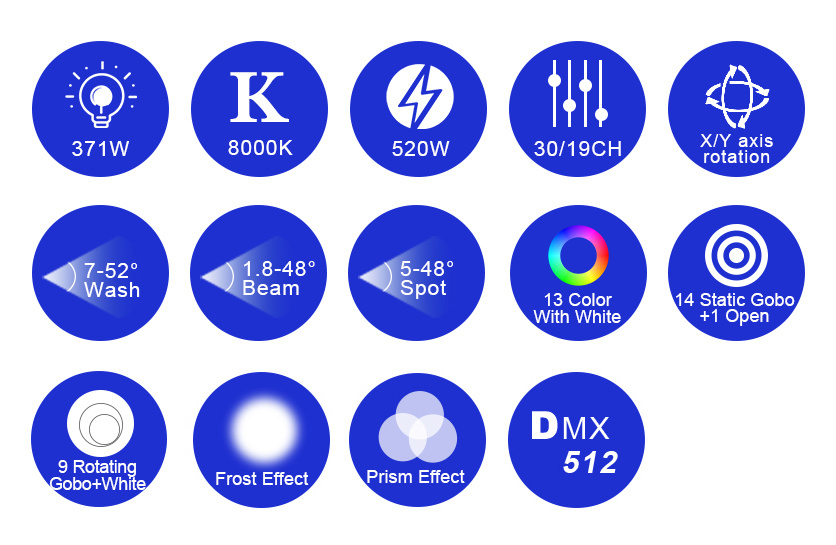

Technical&Specification

Rambo Legend III is a high brightness beam spot wash hybrid fixture, upgraded from Rambo Legend II, is fitted with 371W Osram lamp.

It can project a static (14 plus open) or rotating glass gobo (9) to produce precision in-air and surface images  the output is clear and brilliant. Add in either rotating, 6 facet linear or 8 facet circular prisms to create wide reaching effects across any set.
Drop in the frost filter and use any of the 13 rich colours to create a smooth even wash.

The fixture could be used for concerts, stadiums, TV stations,  theaters, and other professional venue.

Model
RAMBO LEGEND III

Light source

Light Sources: 371W Osram Lamp

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 150mm
Beam Angle: 1.8°-48°
Wash Angle: 7-52°

Control and Program
o 4-buttons touch panel
o Display: LCD display
o Protocols: DMX512, RDM
o DMX Channel: 16/24
o Firmware Upgrade: Upgrade via DMX link
o Pan/Tilt Resolution: 16 bit

PAN & TILT
o Pan movement: 540°
o Tilt movement: 270°
o Automatic Pan/Tilt position correction

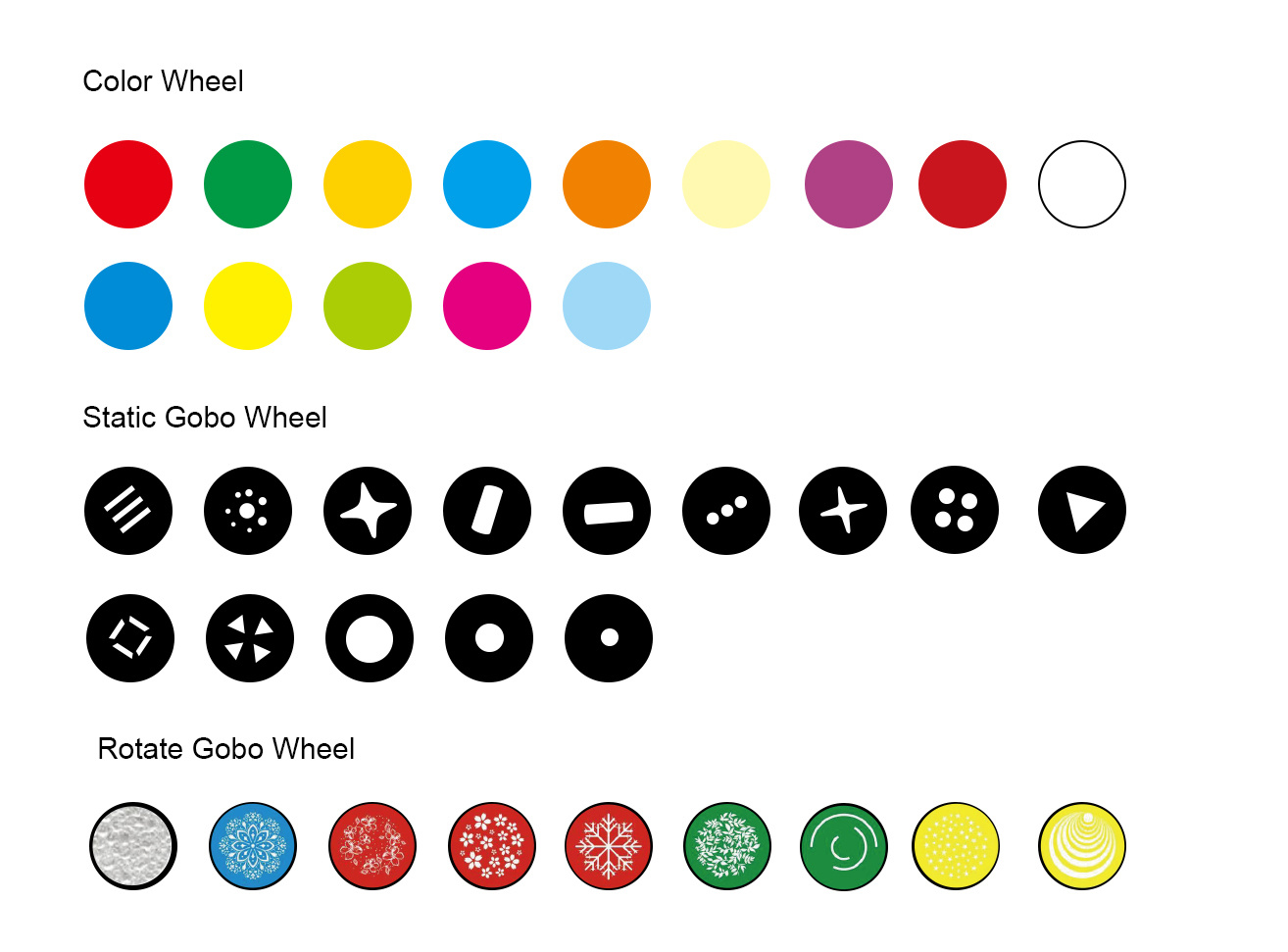

Static Gobos
o 14high-precision gobos, plus open

Color Wheel
o Color Wheel 1: 13 colors plus open,dual color effect

Rotating Gobos
o 9 Interchangeable high-precision glass gobos, plus open
o Adjustable-speed rotating gobo in both directions
o Image diameter:12.5mm
o Outside diameter: 15.97mm
o Thickness: 1.1mm
o Max. thickness: 1.2mm

Electrical and Connectors
o Power supply with electronic auto-ranging
o Input voltage range: 100-220V~ 50/60Hz
o Power consumption: 520 W
o Power In/Out：Power Connector in/out
o Data In/Out: 3pin (or 5-pin) XLR

Fixture Specification
o Fixture dimensions:
Height: 361mm (14.2")
Width: 301mm (11.9")
Depth: 604 mm (23.8")
Weight:20.9 kg (46.2 lbs)

o Flight Case Dimensions:
Height: 470 mm (18.5")
Width: 810 mm (31.9")
Depth: 810 mm (31.9")
(Light in flightcase ) Weight: 73kg (160.9lbs) (2 in 1 Case)

Work environment
o Maximum ambient temperature: 40°C
o Minimum operating temperature: 0°C
o Protection Rating: IP20

Factory configuration
o Digital User Manual
o Power Cable
o 2x Fast-lock clamps for 50mm truss

EFFECTS

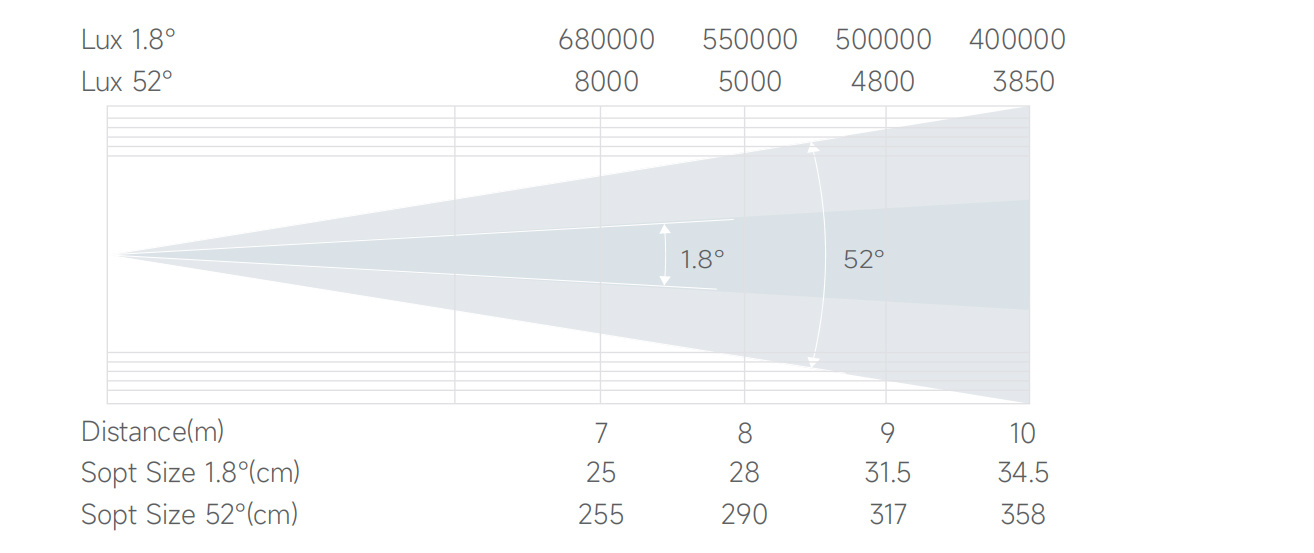

PHOTOMETRICS
