  • 200W LED Beam Spot Wash Moving Head Light

  • HL-200BSW
  • The 200W LED BSW moving head light fixture is a versatile lighting solution that offers a wide range of dynamic lighting effects. It includes an 8-color plus open, a static gobo wheel with 6 gobos plus 3 open slots, and 6 rotating gobos, allowing for versatile image projections. Additionally, the fixture features a gobo shake function for added movement, a 4-facet rotating prism for multi-beam effects, and a motorized frost option for softening light beams. With linear focus control, electronic dimming, and electronic shutter/strobe capabilities, users can easily adjust the focus, brightness, and create dynamic lighting sequences. The fixture's extensive pan/tilt range of 540° pan and 270° tilt provides flexibility in positioning, while offering users the ability to create captivating lighting displays in various settings. Overall, the moving head light fixture is a powerful tool for enhancing any event or performance with its impressive range of features and effects.
Keyword:
HL-200BSW
Introduction
Functional indicator diagram
Download

OUTPUT

Light Sources:200W LED module

LED life expectancy:20,000 hours

Color temperate:8500K

Zoom Angle:4-35°

Illuminance:19,000lm@7m

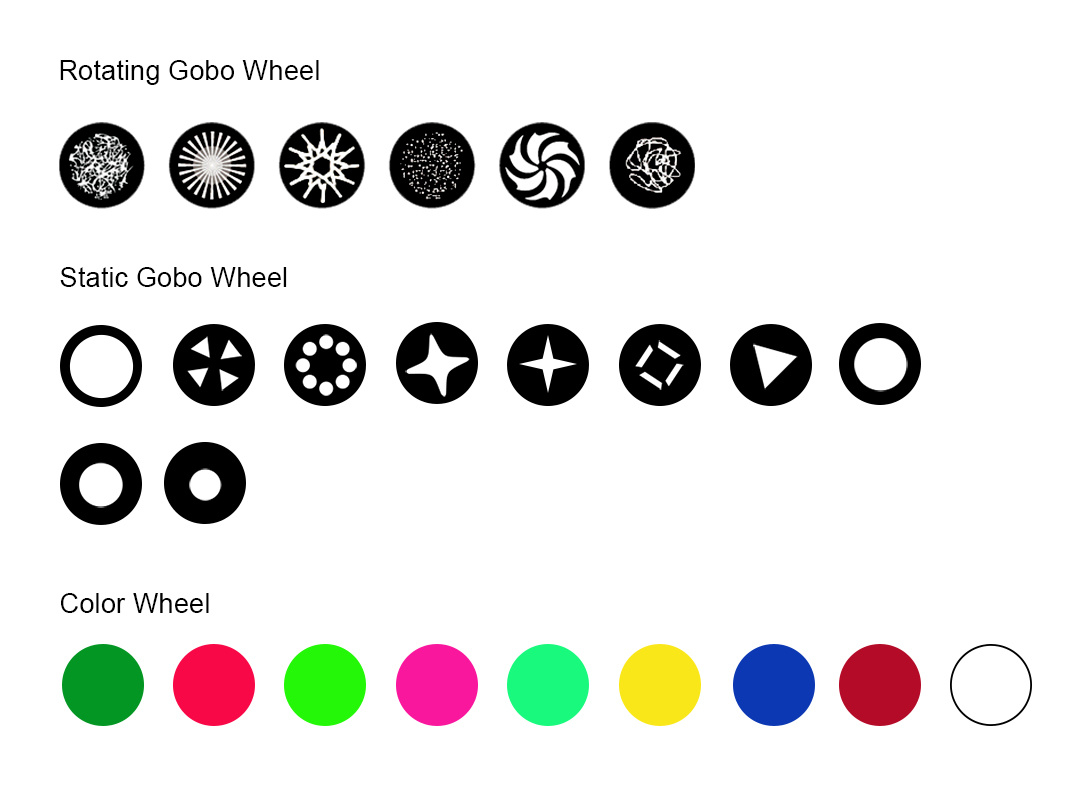

DYNAMIC EFFECTS

Color Wheel:8 colors + open

Static Gobos:6 + 3 open

Rotating Gobos:6 + open

Gobo Shake:Yes

Prism:4-Facet Prism, rotating

Frost:Motorized

Focus:Linear Focus

Dimmer:540°Pan 270°Tilt

Shutter/Strobe:Electronic

Pan/Tilt Range:540°Pan 270°Tilt



CONTROL

Control Protocols:DMX, RDM

DMX Channel:17



ELECTRONIC

Voltage Range: 100-240V, 50/60Hz

Power consumption: 265W



PHYSICAL

Dimensions: 305*225*470mm

Weight: 10.3kg (22.71lbs



LISTINGS

Certification: CE & RoHS

Environment: IP20

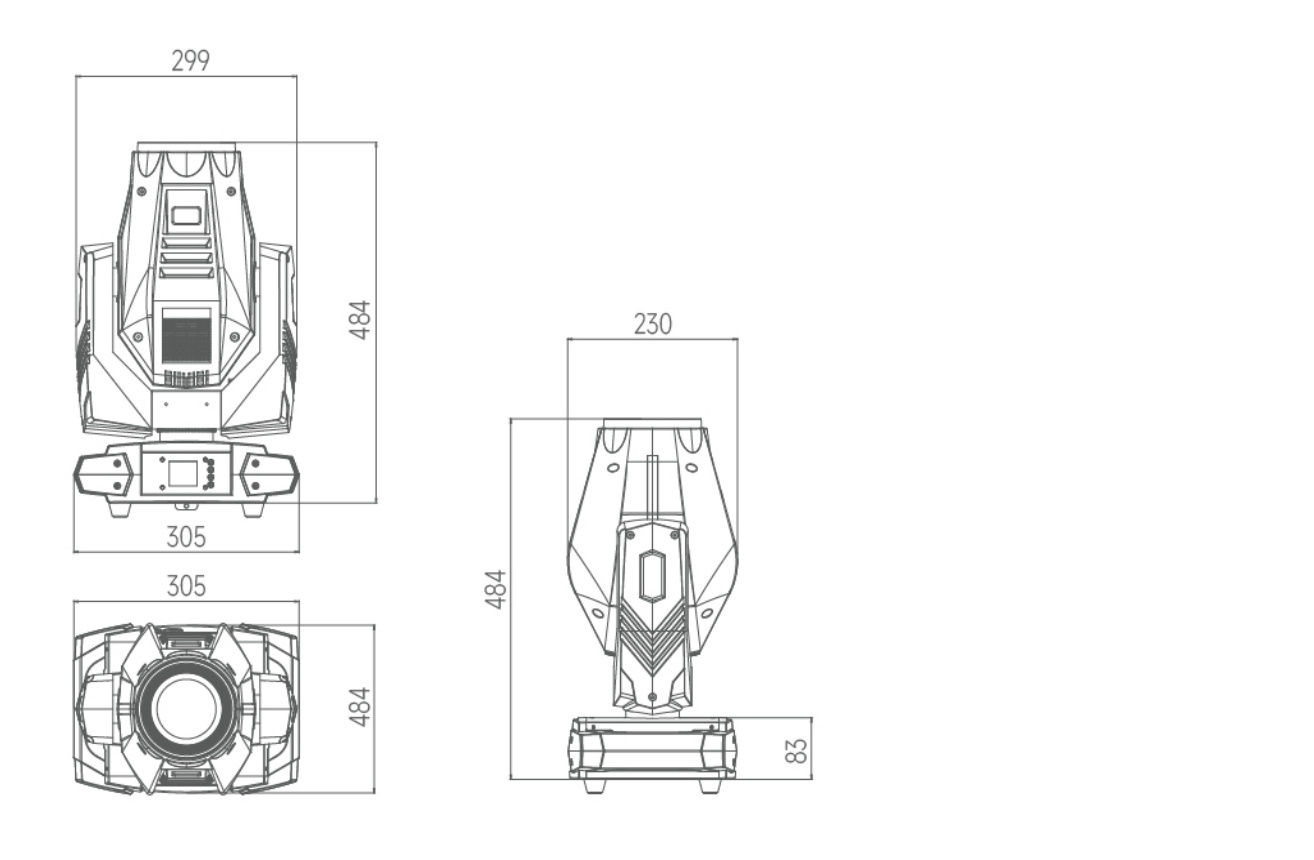

SIZE

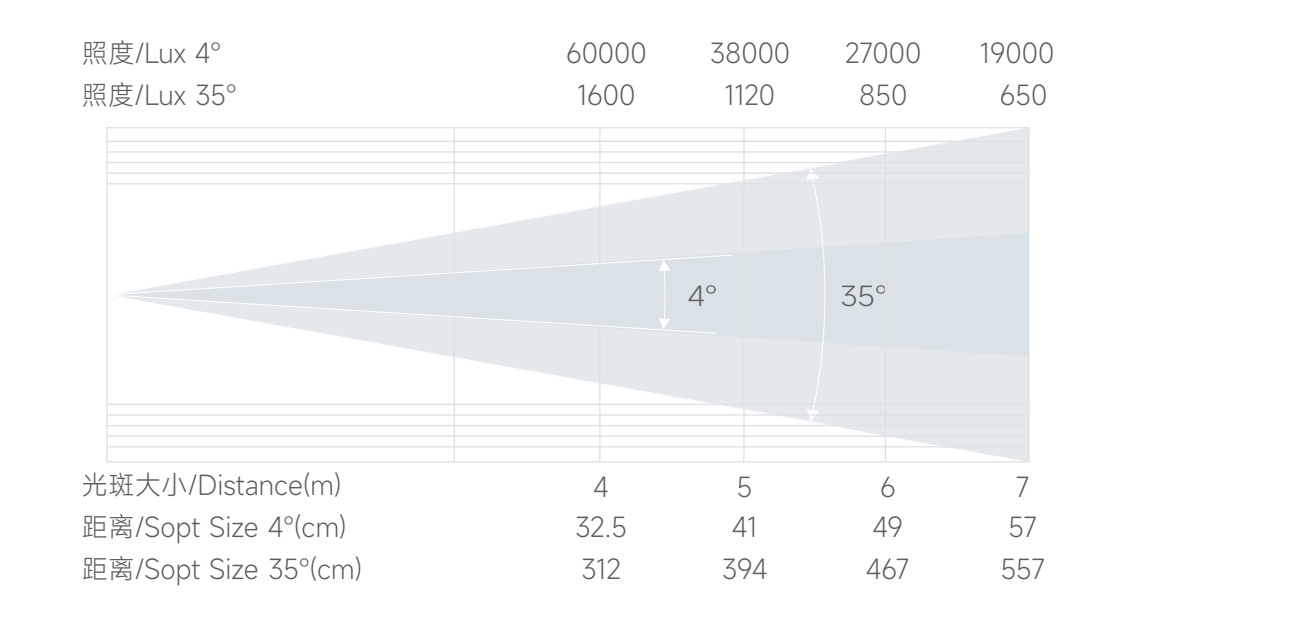

PHOTOMETRICS DIAGRAM 4° 35°




DYNAMIC EFFECTS
