600W LED Spot Framing Moving Head Light





600W LED Spot Framing Moving Head Light

HL-600FS

600 LED spot framing moving head light was adopted with 550w led module light source with super high lighting distance , and it is fitted with a gobo wheel (7 rotating gobos + open) with super fast and smooth pan&tilt movenment , a color wheel with 7 colors with open of a uniform color effect. Perfect Framing System:Our framing function is through Four cutting gates achieve fast and smooth cutting, and the cutting direction and Angle of each gate could be controlled independently. The whole cutting module can be rotated plus or minus 45 degrees (±45°) 600 led spot framing is widely used in TV stations, weddings, events,show performances and other professional places.

Category

LED Spot Profile

Keyword:

LED

Spot

Framing

Introduction

Functional indicator diagram

Download

Model
HL-600FS

Light source
Light Sources: 550w led module
LED life expectancy: 20000hrs

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 115 mm

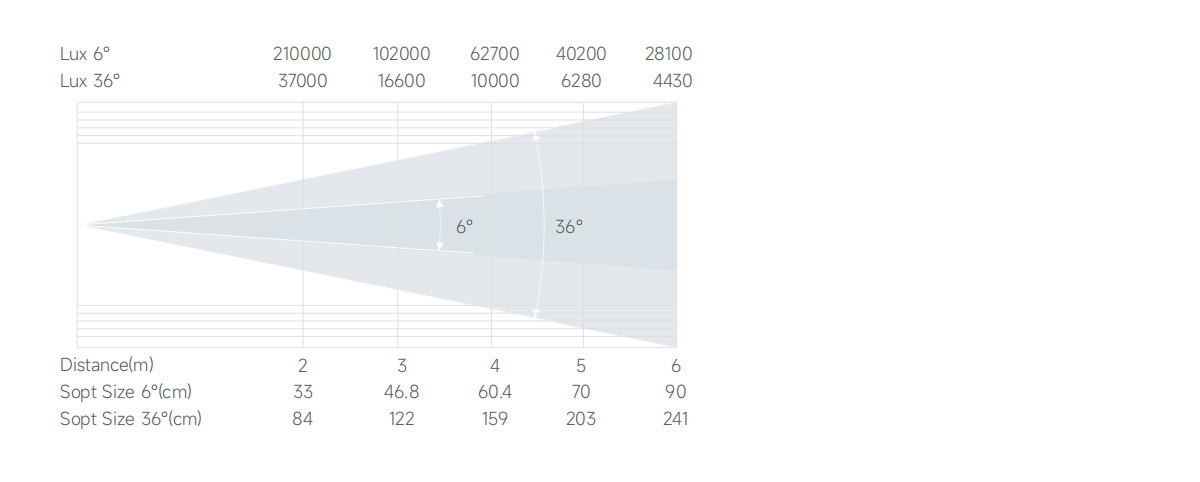

Beam Angle: 8°-32°

Control and Program
o Rotating button control
o Display: LCD display
o Protocols: DMX512, RDM
o DMX Channel: 25
o Firmware Upgrade: Upgrade via DMX link
o Pan/Tilt Resolution: 16 bit

PAN & TILT
o Pan movement: 540°
o Tilt movement: 270°
o Automatic Pan/Tilt position correction

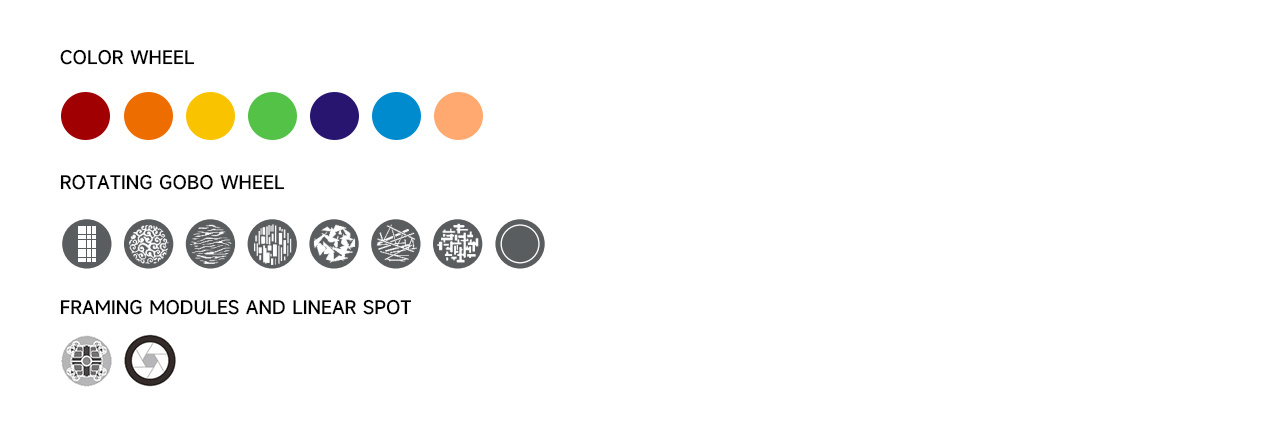

Rotating Gobos
o 7 high-precision gobos, plus 1 open

Color Wheel
o Color Wheel : 7 colors plus 1 open

Electrical and Connectors
o Power supply with electronic auto-ranging
o Input voltage range: 100-220V~ 50/60Hz
o Power consumption: 600 W
o Power In/Out：Power Connector in/out
o Data In/Out: 3&5 pin XLR,

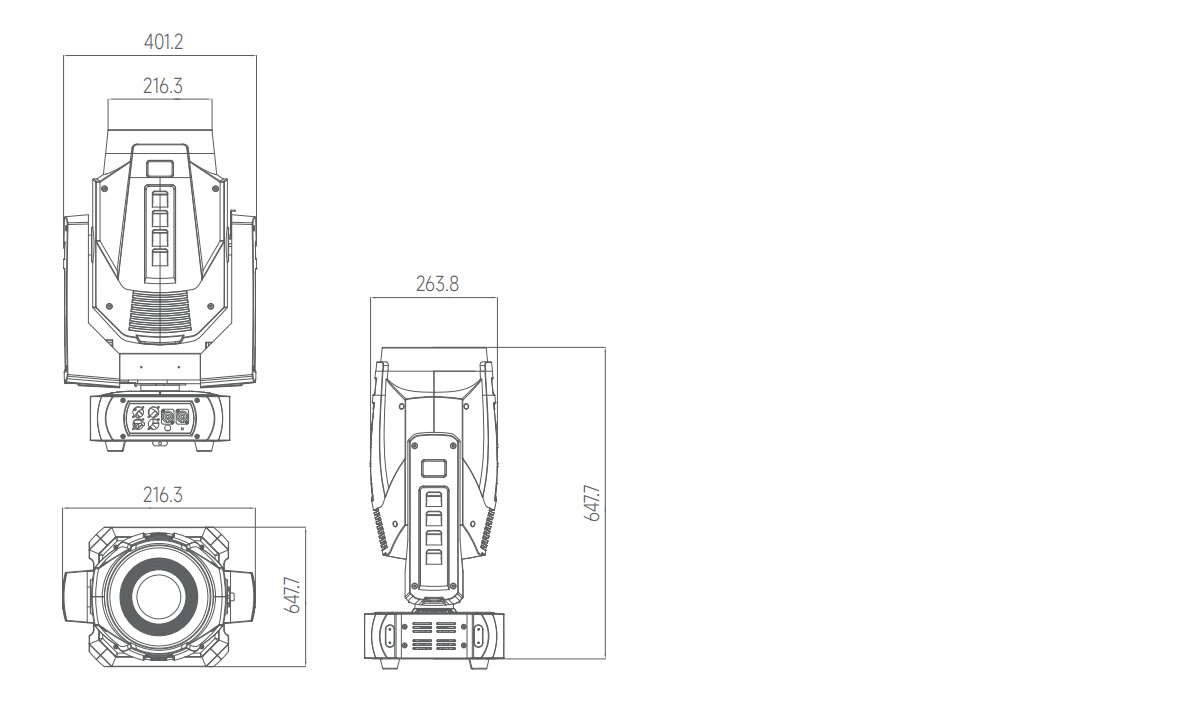

Fixture Specification
o Fixture dimensions:
Height: * 647.7mm (25.5")
Width: 401 mm (15.79")
Depth: 290 mm (11.42")
Weight: 20.7 kg (45.64lbs)

o 2IN1 Flight Case Dimensions:
Height: 900mm (35.43")
Width: 660 mm (25.98")
Depth: 550 mm (21.65")
(Light in flightcase )Weight: 79.5kg (175.27lbs)

Work environment
o Maximum ambient temperature: 40°C
o Maximum surface temperature: 65°C
o Minimum operating temperature: 0°C
o Protection Rating: IP20
