HT-480 IP 480W Super Beam Moving Head Light IP65

HT-480 IP

The HT-480 is a versatile and innovative beam moving head designed to excel in diverse environments, boasting a maintenance-free construction and an IP65 rating that ensures its suitability for outdoor applications. This fixture emits a striking narrow beam of light in spot position, delivering a potent beam effect, sharp gobo projections, and fluid rapid movements characterized by precise positioning and consistent color rendering. Featuring an exceptional lighting distance range, the HT-480 comes equipped with 11 fixed gobos and 7 open positions, providing flexibility for creative lighting designs. Additionally, users have the choice between an 8-facet or 16-facet prism to further enhance the visual effects. The fixture offers a color palette comprising 12 colors, including white, and a supplementary rainbow color wheel with 7 colors for added versatility in creating captivating lighting displays. Designed for large stadiums, major performances, and professional venues operating in various weather conditions, the HT-480 stands out as a dependable lighting solution for outdoor events that demand high-quality and impactful lighting effects to elevate the overall visual ambiance and create memorable experiences for audiences.

Category

Outdoor Discharge Beam

Keyword:

super

power

tilt

pan

gobos

light

temperature

IP65

Beam

Introduction

Functional indicator diagram

Download

Model
THUNDER HT-480 IP

Light source
Light Sources: Philips 460w lamp
LED life expectancy: 2000hrs

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 186 mm

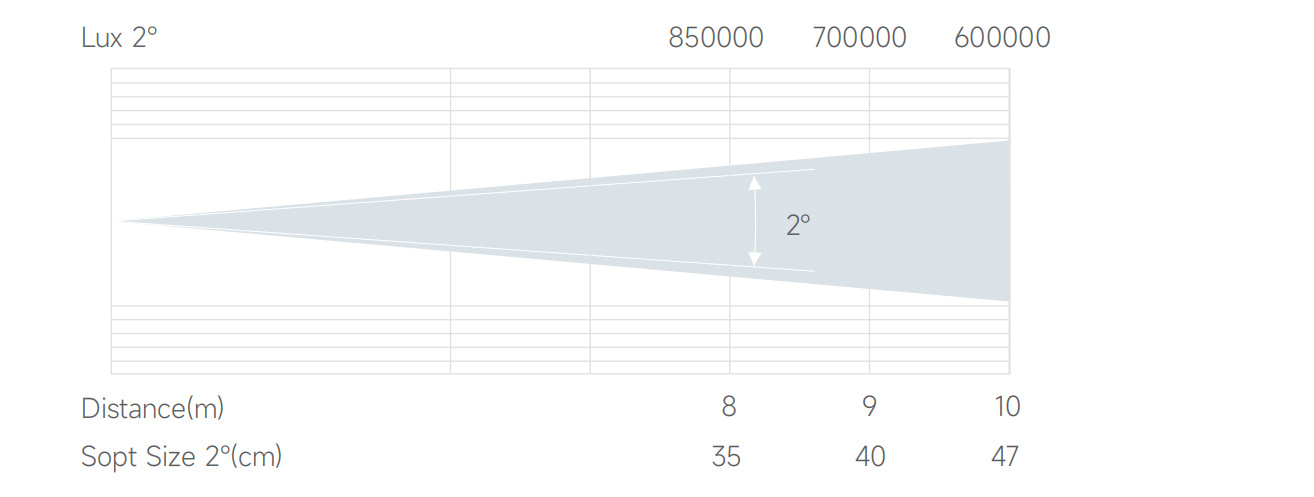

Beam Angle: 0°-2°

Control and Program
o 4-buttons touch panel
o Display: LCD display
o Protocols: DMX512, RDM
o DMX Channel: 16/24
o Firmware Upgrade: Upgrade via DMX link
o Pan/Tilt Resolution: 16 bit

PAN & TILT
o Pan movement: 540°
o Tilt movement: 270°
o Automatic Pan/Tilt position correction

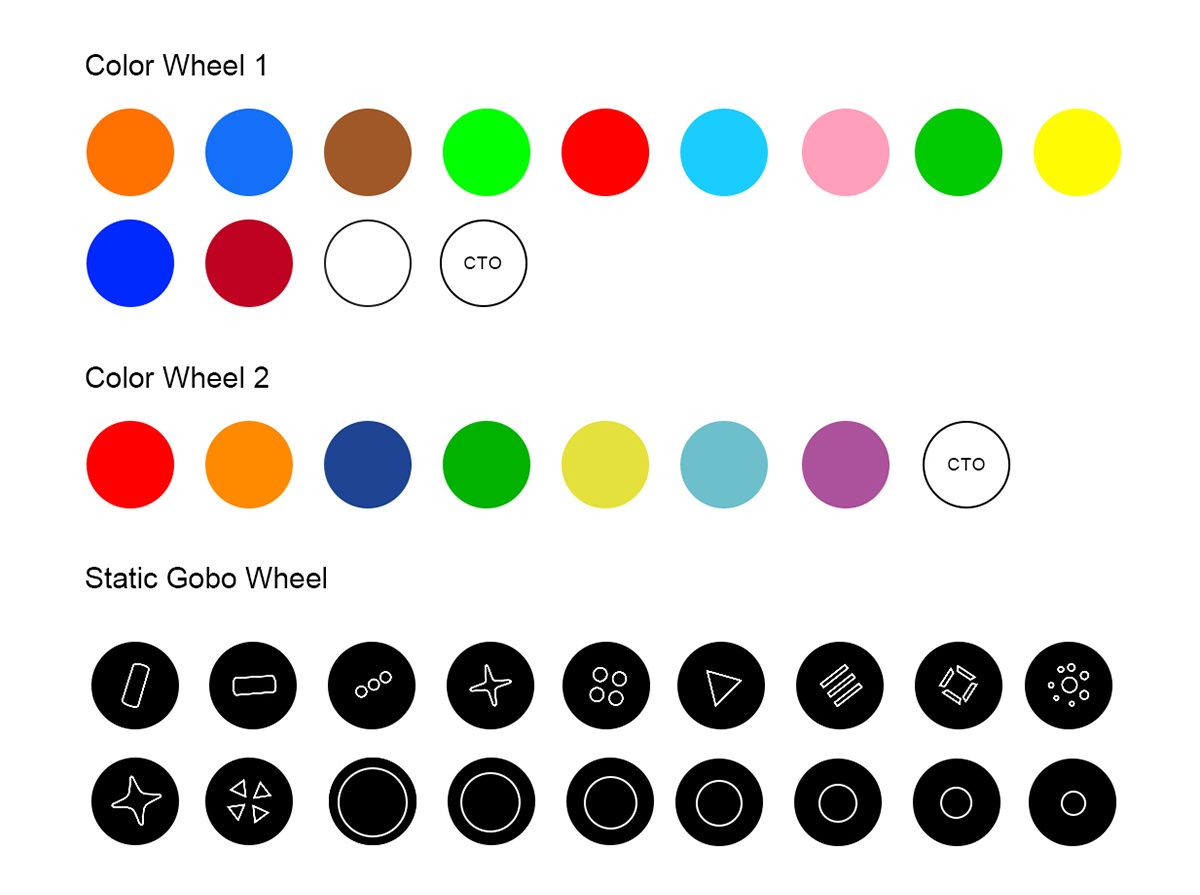

Static Gobos
o 11 high-precision gobos, plus 1 open

Color Wheel
o Color Wheel 1: 12 colors plus open

Electrical and Connectors
o Power supply with electronic auto-ranging
o Input voltage range: 100-220V~ 50/60Hz
o Power consumption: 580 W
o Power In/Out：Power Connector in/out
o Data In/Out: 3pin or 5-pin XLR, True One connector

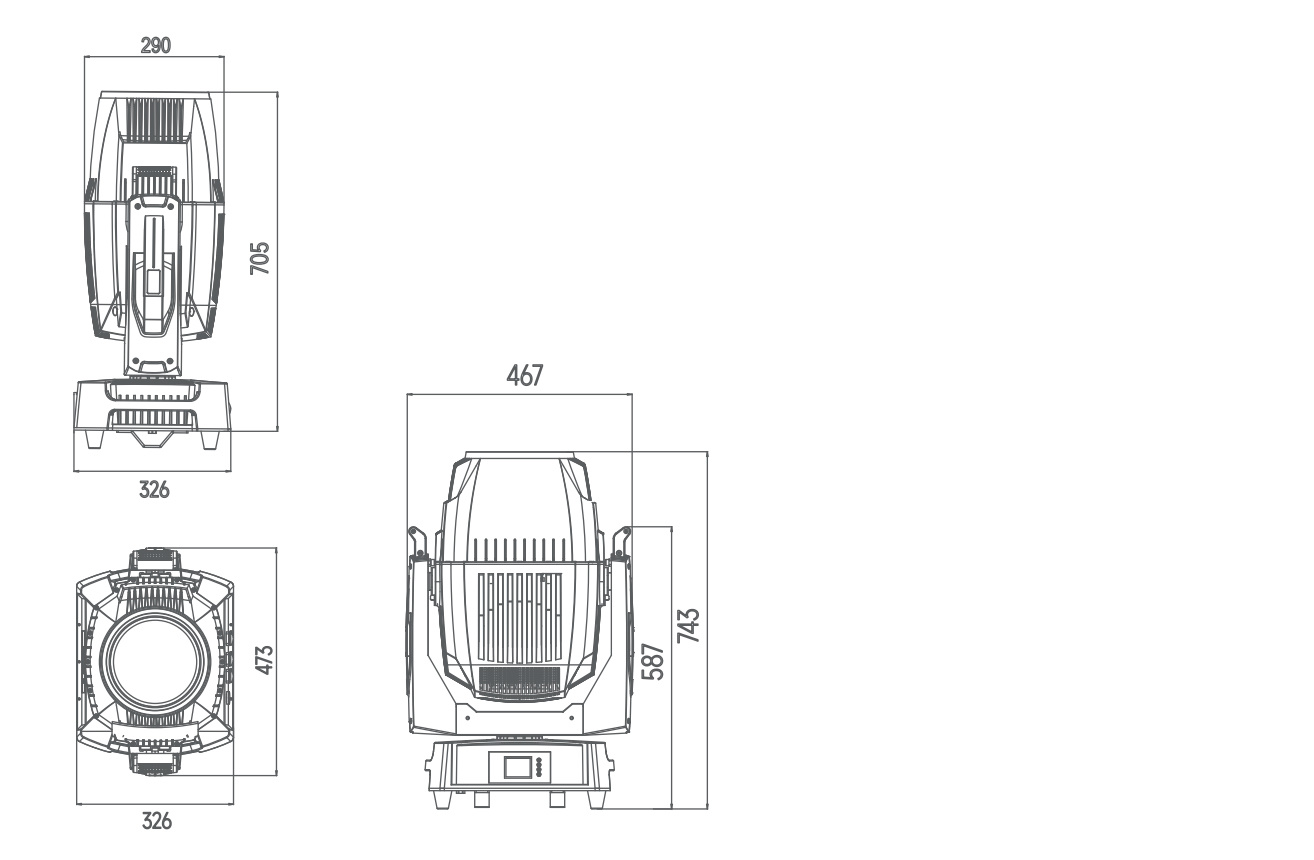

Fixture Specification
o Fixture dimensions:
Height: 705 mm (27.76")
Width: 326 mm (12.83")
Depth: 473mm (16.5")
Weight: 34.85 kg (76.83lbs)

o Flight Case Dimensions:
Height: 935 mm (36.8")
Width: 326 mm (18.3")
Depth: 473 mm (23.8")
(Light in flightcase ) Weight: 71kg (156.53lbs) (Single Loader Case)

Work environment
o Maximum ambient temperature: 40°C
o Maximum surface temperature: 65°C
o Minimum operating temperature: -25°C
o Protection Rating: IP65
