HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65
HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65
HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65
HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65
HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65
HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65
HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65
  • HT-480BSW IP 480W Beam Spot Wash CMY Moving Head Light IP65

  • HT-480BSW IP
  • HT-480BSW is a multi-environmental, maintenance-free beam moving head with IP65-rating and a bright color output, generating a narrow beam of light in spot position. It features in strong beam effect, clear gobo, fast and smooth running, precise positioning and uniform pure color. The fixture has a super high and long lighting distance range, with 11 fixed gobos+8 open, 8-facet ,16-facet & T-shape prism, 12 colors with white and a effect gobo wheel. This fixture could be used for large stadiums, large performances and other professional venues and all-weather environment.
Keyword:
LED
Introduction

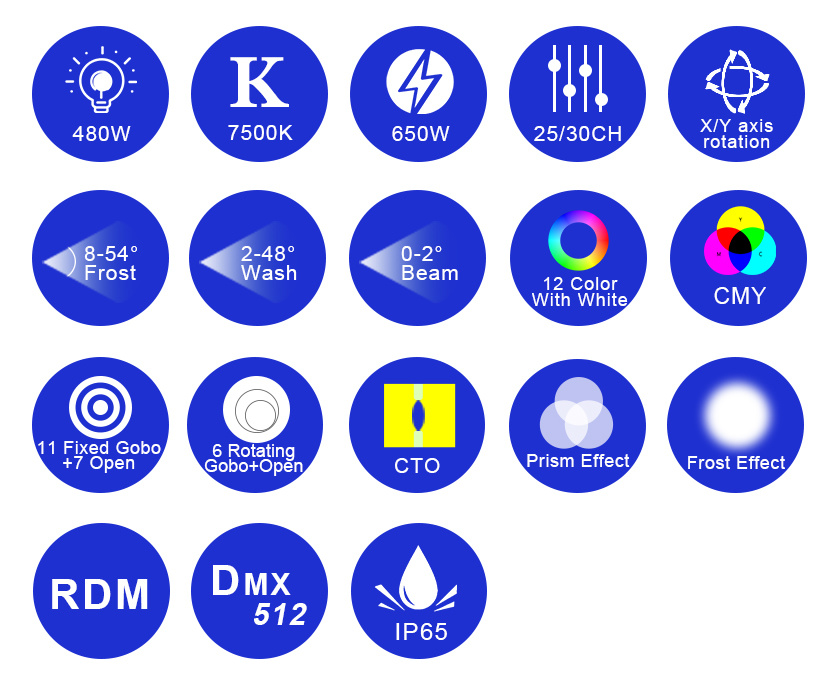

Functional indicator diagram
Download

THUNDER HT-480BSW IP




Model
THUNDER HT-480BSW IP

Light source
Light Sources: USHIO NSL480 lamp
LED life expectancy: 2000hrs



Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 171 mm
Beam Angle: 0°-2°
Wash Angle: 2-48°
Frost Angle: 8-54°



Control and Program
o 4-buttons touch panel
o Display: LCD display
o Protocols: DMX512, RDM
o DMX Channel: 25/30
o Firmware Upgrade: Upgrade via DMX link
o Pan/Tilt Resolution: 16 bit

PAN & TILT
o Pan movement: 540°
o Tilt movement: 270°
o Automatic Pan/Tilt position correction

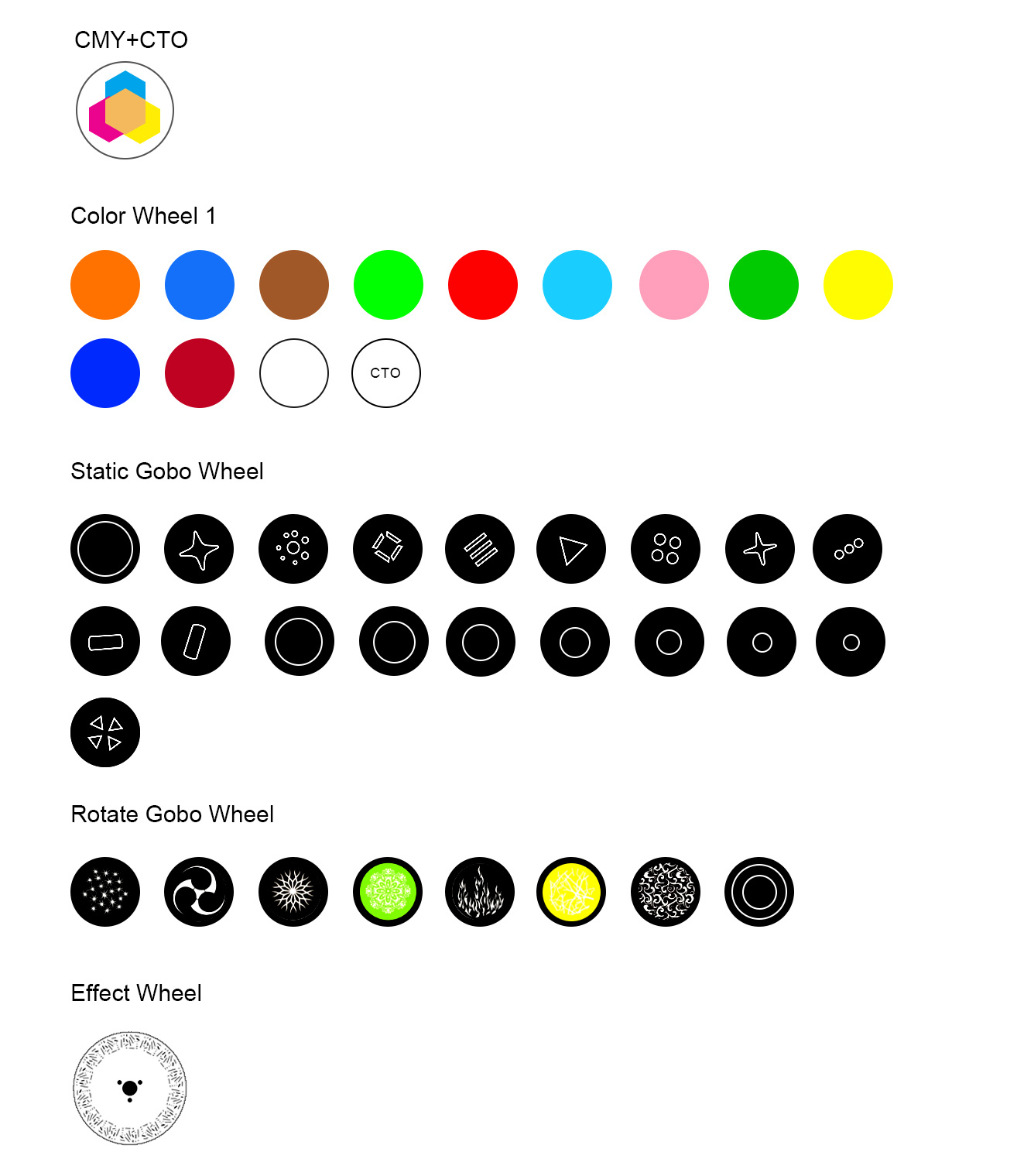

Static Gobos
o 11 high-precision gobos, plus 8 open

Color Wheel
o Color Wheel 1: 12 colors plus open
CMY Linear 100%



Rotate Gobos
O 7 rotate gobos



Electrical and Connectors
o Power supply with electronic auto-ranging
o Input voltage range: 100-220V~ 50/60Hz
o Power consumption: 580 W
o Power In/Out:Power Connector in/out
o Data In/Out: 3pin or 5-pin XLR, True One connector

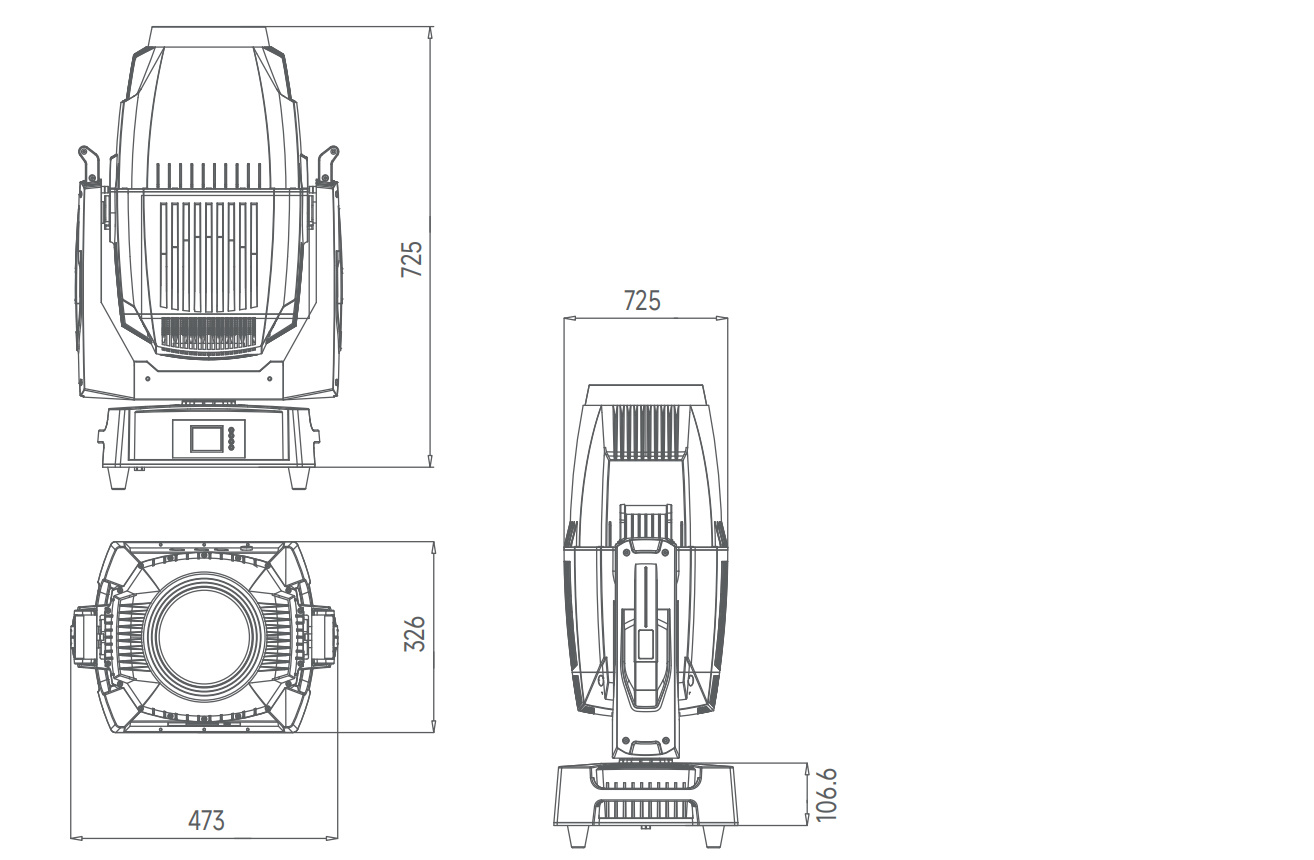

Fixture Specification
Fixture dimensions:
o Height: 752.5 mm (29.63")
o Width: 326 mm (12.83")
o Depth: 473 mm (18.62")
o Weight: 42 kg (92.6lbs)


Flight Case Dimensions:
o Height: 935 mm (36.8")
o Width: 326 mm (18.3")
o Depth: 473 mm (23.8")
o (Light in flightcase ) Weight: 71kg (156.53lbs) (Single Loader Case)

Work environment
o Maximum ambient temperature: 40°C
o Maximum surface temperature: 65°C
o Minimum operating temperature: -25°C
o Protection Rating: IP65

Factory configuration
o Digital User Manual
o Power Cable
o 2x Fast-lock clamps for 50mm truss
