HT-1400BSWZ IP 1400W LED Beam Spot Wash Framing IP65

HT-1400BSWZ IP

The HT-1400BSWZ, engined by 1200W LED module, delivers a record performance of 63,000lm at 7,800k. With its powerful brightness and IP65 rating, it could be deployed outdoors, at festivals, at cultural tourism sites, or as an architectural effect, without the need for expensive and heavy rain protection. Its other features including CMY plus CTO flags, a color wheel, a continuous dynamic effect wheel, a static & rotating gobo wheel, one 3- facet prism,one frost filter, and precise shutter blades. Squeezed Beam Wash Spot Framing 4 functions into one IP-rated body.

Category

Outdoor LED Spot Profile

Keyword:

beam

gobos

power

pan

with

gobo

system

LED

IP65

Introduction

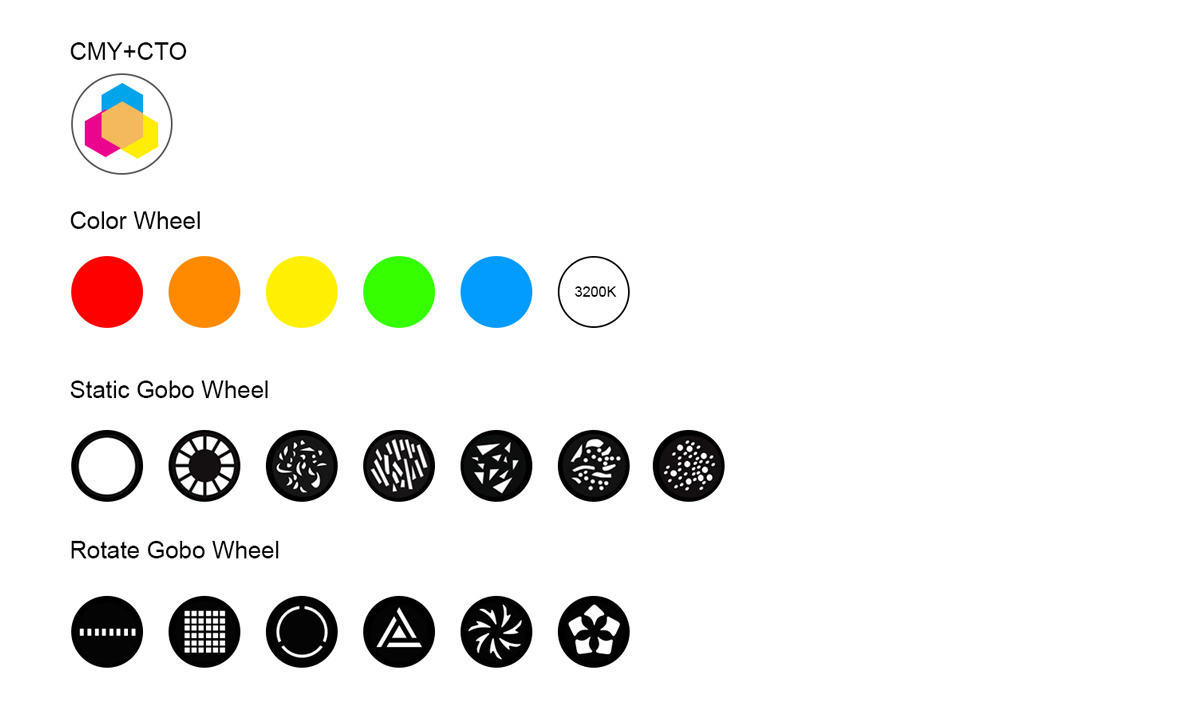

Functional indicator diagram

Download

Model

HT-1400BSWZ IP

Light source
Light Sources: Powerful 1200W LED engine
LED life expectancy: 20000 hours

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 170 mm

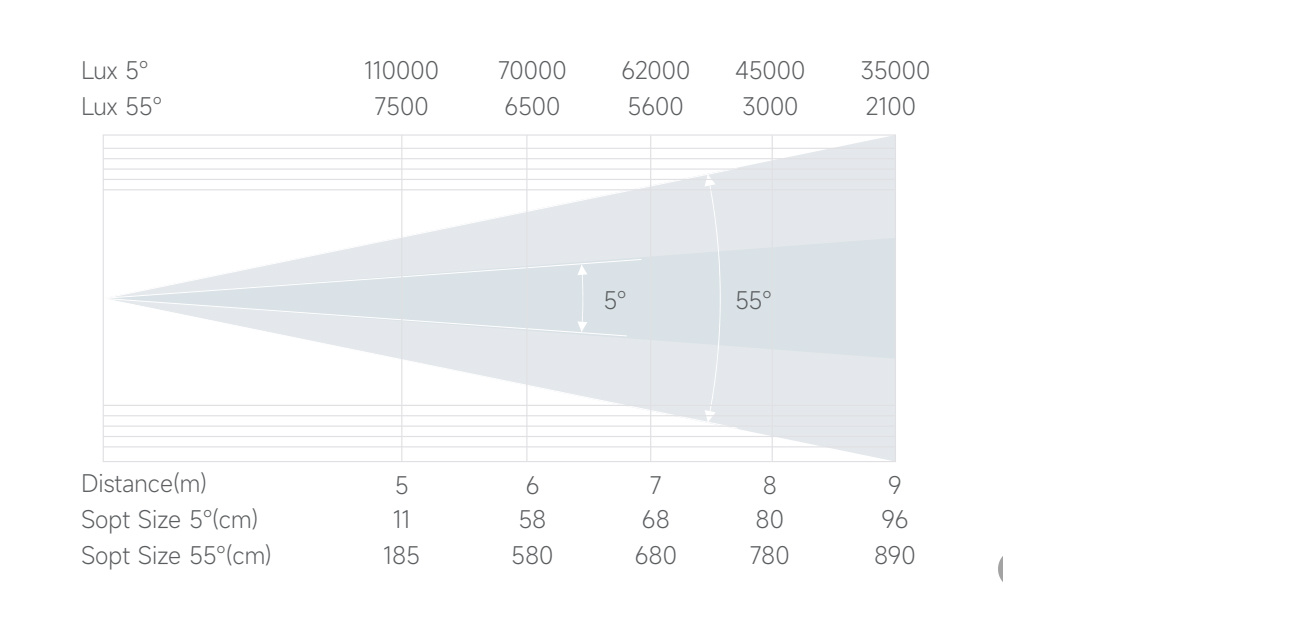

Beam Angle: 5.5-50°

Control and Program
o 4-buttons touch panel
o Display: LCD display
o Protocols: DMX512, RDM
o DMX Channel: 34
o Firmware Upgrade: Upgrade via DMX link
o Pan/Tilt Resolution: 16 bit

PAN & TILT
o Pan movement: 540°
o Tilt movement: 270°
o Automatic Pan/Tilt position correction

Rotating Gobos
o 6 Interchangeable high-precision glass gobos, plus open
o Adjustable-speed rotating gobo in both directions
o Image diameter: 23 mm ?
o Outside diameter: 28 mm ?
o Thickness: 1.1 mm ?
o Max. thickness: 4mm ?
o "SLOT & LOCK" system for easy gobo replacement

Static Gobos
o 6 high-precision gobos, plus 2 open

Effective Gobo Wheel
o One gobo wheel with dynamic effects, rotatable

Framing System
o Shutter Blades: 4 Blades, each with separate movement and full blackout
o Movement: Smooth with variable speed, ultrafast for creating mid-air effects
o Positioning: The blades can be precisely positioned
o Rotation: +- 90° of the complete framing system

Color Wheel
o Color Wheel 1: 6 colors plus open
CMY Linear 100%
CTO adjustment

Electrical and Connectors
o Power supply with electronic auto-ranging
o Input voltage range: 100-220V~ 50/60Hz
o Power consumption: 850 W
o Power In/Out：Power Connector in/out
o Data In/Out: 3pin or 5-pin XLR, True One connector

Fixture Specification
o Fixture dimensions:
Height: 857 mm (26.9")
Width: 326mm (25.4")
Depth: 473 mm (18.6")
Weight: 45 kg (99.2lbs)
o Flight Case Dimensions:
Height: 820 mm (36.8")
Width: 400 mm (18.3")
Depth: 580 mm (23.8")
Weight: 71kg (32.2.lbs) (Single Loader Case)

Work environment
o Maximum ambient temperature: 40°C
o Maximum surface temperature: 65°C
o Minimum operating temperature: 0°C
o Protection Rating: IP65

Factory configuration
o Digital User Manual
o Power Cable
2x Fast-lock clamps for 50mm truss

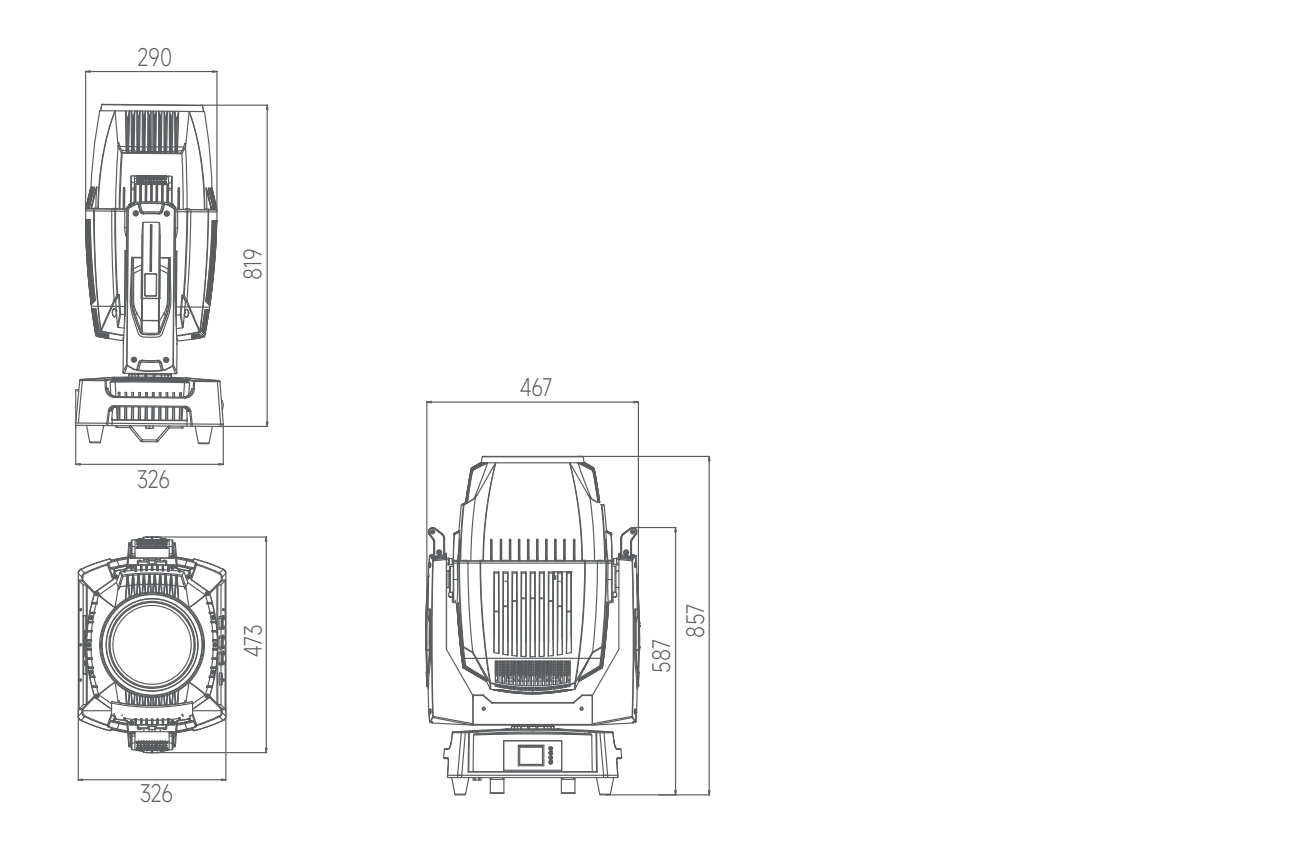

SIZE
