The hybrid fixture is equipped with a high-power 461W LED engine, providing luminance for a wide range of applications while maintaining energy efficiency. The LED boasts a remarkable life expectancy of 20,000 hours, ensuring longevity and reduced maintenance. At the heart of its performance, an advanced optical system delivers precise gobos and vibrant colors, enhanced by a large 103 mm frontal lens. Its versatile beam angle adjustment ranges from a tight 4° spot to a wide 50° flood, making it suitable for various event sizes and settings. For dynamic lighting effects, the fixture offers extensive movement capabilities with a 540° pan and a 270° tilt, complemented by an automatic position correction feature that ensures accurate and agile responsiveness to control inputs. The lighting fixture's versatility is further expanded with its gobo capabilities. It includes seven interchangeable, high-precision rotating gobos, augmented by an adjustable-speed rotation mechanism and a user-friendly "SLOT & LOCK" system for quick gobo changes. Additionally, there are five static gobos, providing a total of twelve gobo patterns for creative lighting designs. Color mixing is achieved through the first color wheel with seven colors plus open, allowing for semi-color effects, and a CMY linear system that delivers 100% color mixing capability for a broad spectrum of hues. Lastly, the fixture is equipped with an 8+linear prism, increasing the potential for complex and layered lighting effects, ideal for theatrical performances, concerts, and other professional lighting scenarios.

Library Download

| Parameter

Model
HL-600BSW

Light source
Light Sources: Powerful 461W LED engine
LED life expectancy: 20,000 hours


Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 103 mm
Beam Angle: 4°-50°


Control and Program
o    4-buttons touch panel
o    Display: LCD display
o    Protocols: DMX512
o    DMX Channel: 20/25CHS
o    Firmware Upgrade: Upgrade via DMX link
o    Pan/Tilt Resolution: 16 bit

PAN & TILT
o    Pan movement: 540°
o    Tilt movement: 270°
o    Automatic Pan/Tilt position correction

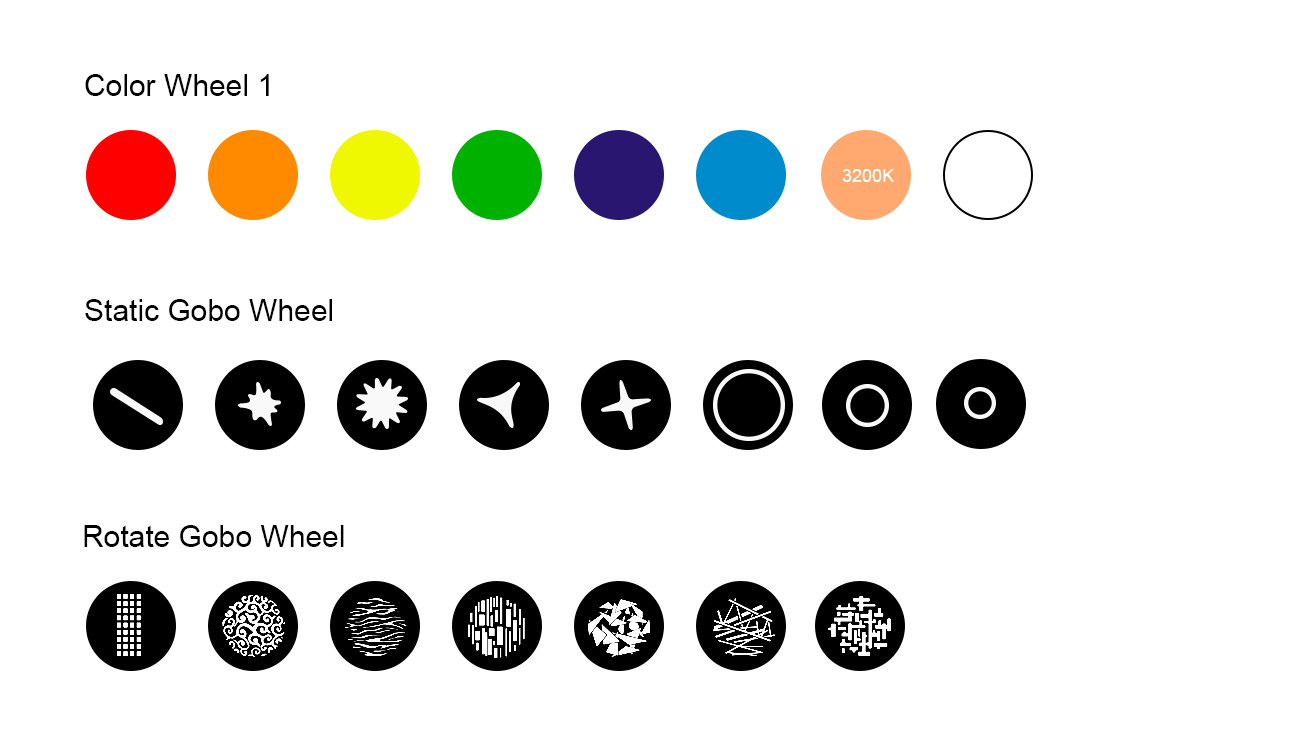

Rotating Gobos
o    7 Interchangeable high-precision glass gobos, plus open
o    Adjustable-speed rotating gobo in both directions
o    Image diameter:24mm
o    Outside diameter:28mm
o    Thickness: 1.1
o    Max. thickness: 1.2
o    "SLOT & LOCK" system for easy gobo replacement

Static Gobos
o    5 high-precision gobos, plus 3 open


Color Wheel
o    Color Wheel 1: 7 colors plus open, semi color effect
CMY Linear 100%


Electrical and Connectors
o    Power supply with electronic auto-ranging
o    Input voltage range: 100-240V~ 50/60Hz
o    Power consumption: 600 W
o    Power In/Out:Power Connector in/out
o    Data In/Out: 3pin XLR

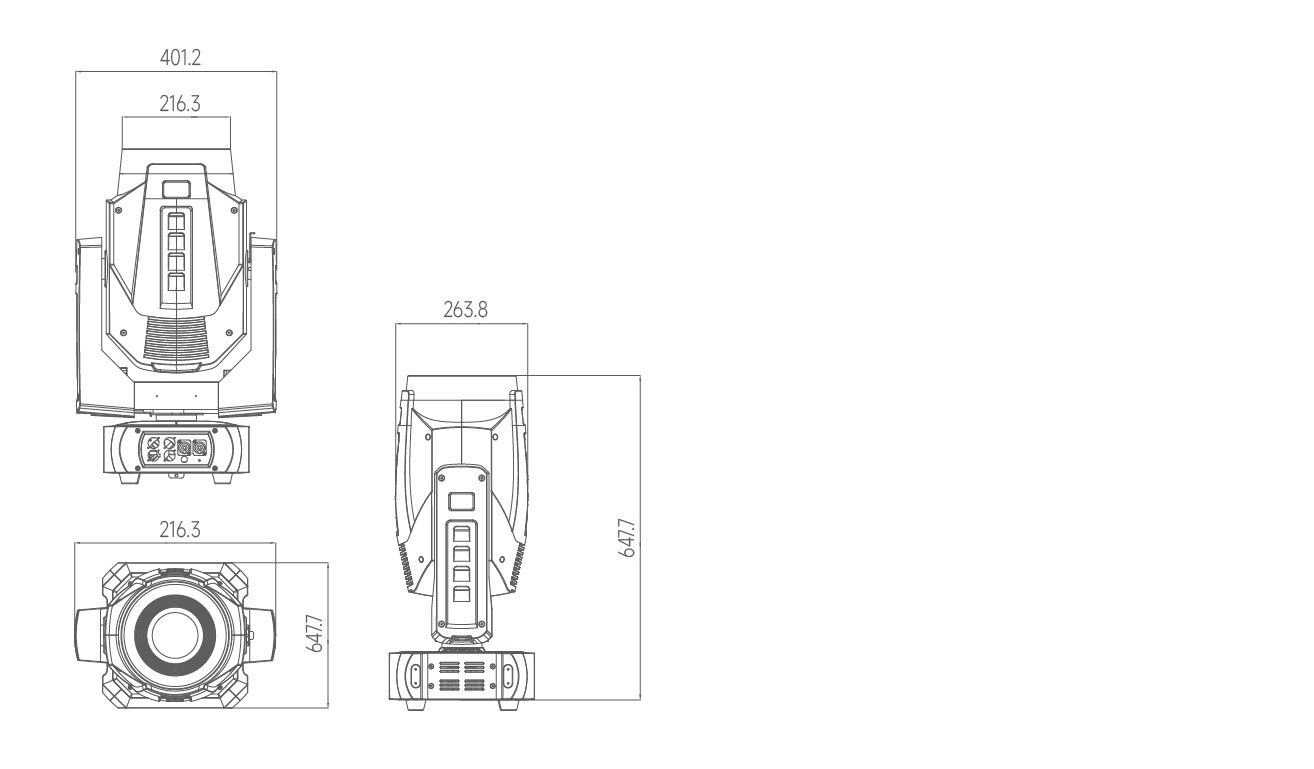

Fixture Specification
o    Fixture dimensions:
    Height: 647.7 mm (25.5")
    Width: 290 mm (11.4")
    Depth: 401 mm (15.8")
    Weight: 20.7 kg (45.6lbs)
o    Flight Case Dimensions:
    Height: 920 mm (36.2")
    Width: 560 mm (22")
    Depth: 670 mm (26.4")
    Weight: 80kg (176.4lbs) (2IN1 Loader Case)

Work environment
o    Maximum ambient temperature: 40°C
o    Maximum surface temperature: 65°C
o    Minimum operating temperature: 0°C
o    Protection Rating: IP20


Factory configuration
o    Digital User Manual
o    Power Cable
o    2x Fast-lock clamps for 50mm truss

| Size

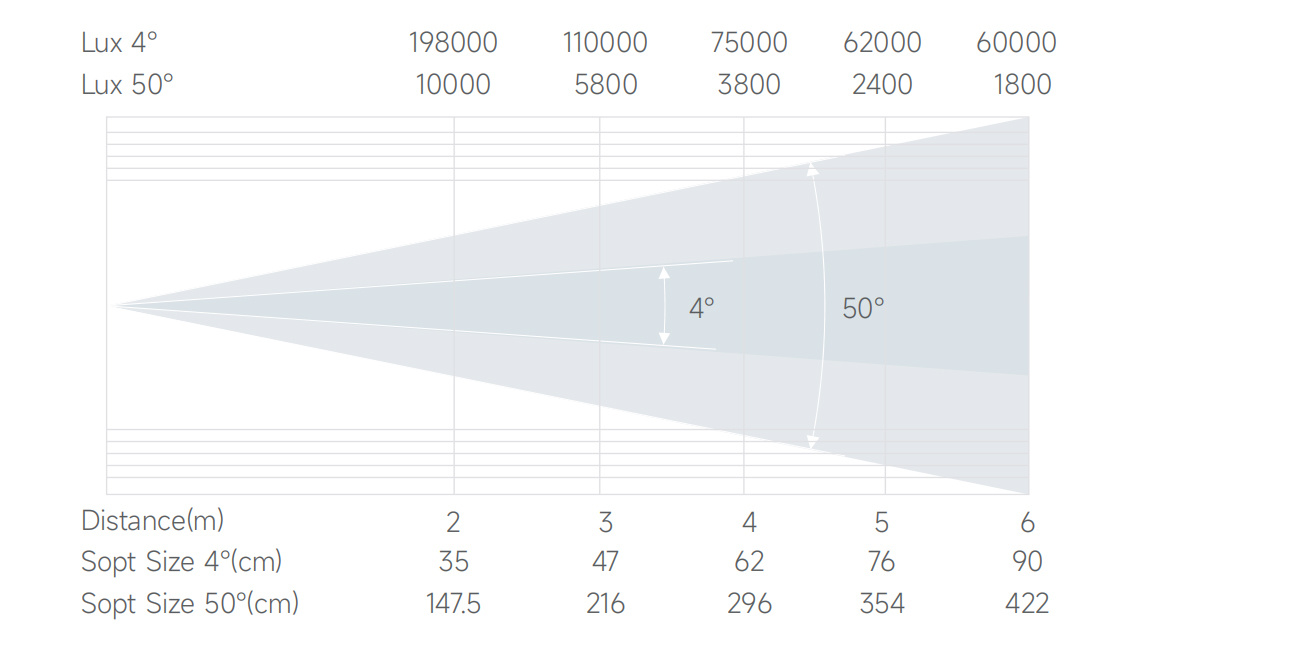

| Lux
