  • 420 LED 3 IN 1

  • HL-420BSW PROMAX
  • The 420 LED BSW 3in1 CMY lighting fixture is a powerful and versatile solution known for its exceptional performance in high altitudes and long-range applications. Equipped with a static gobo wheel featuring 5 gobos + 3 open slots and a rotating gobo wheel with 7 gobos + 1 open slot, this fixture offers a wide range of creative possibilities for lighting designers. Additionally, it includes a frost lens, a color wheel with 7 colors plus open, an 8-facet prism, and a parallel prism stack that can combine three different prism effects, adding depth and complexity to lighting displays. One of the standout features of the 420 LED BSW 3in1 CMY fixture is its rich CMY independent linear color mixing effect, allowing for seamless blending of colors to create dynamic and vibrant lighting effects. This advanced color mixing capability, combined with the various gobos, prisms, and lenses, enables users to craft captivating and visually stunning lighting compositions. Whether used in concert settings, theatrical productions, or other entertainment venues, this fixture is designed to elevate the lighting experience and bring creative visions to life with its impressive range of features and effects.
Keyword:
420
gobo
temperature
led
high
lights stage
stage lighting equipment
Introduction

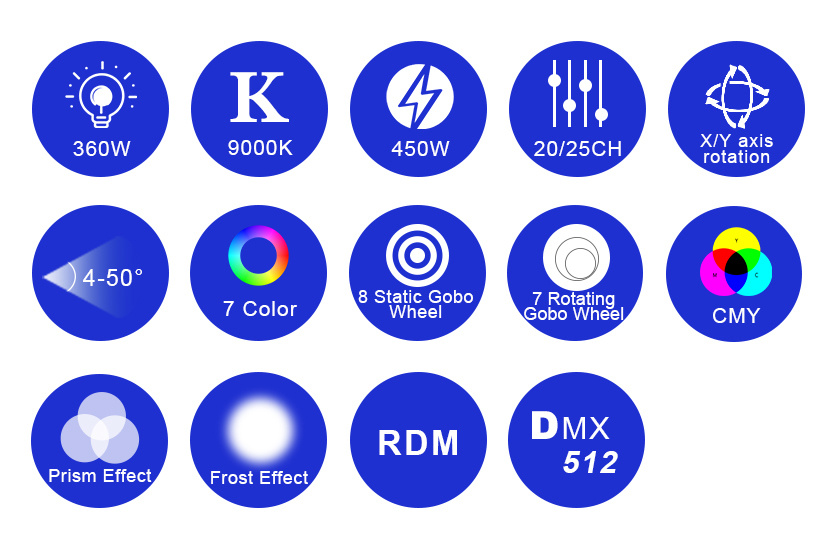

Functional indicator diagram
Download

Led Light Source

Module360WLED Module

Lumen19500lm

LED Lifespan20000Hrs



Optical System

Optical Lens:High precision glued optical lens

Zoom Angle :4-50°



Electrical and Interface

Input voltage range

100V-240V 50Hz/60Hz

Rated Power450W

Power:Power In/Out

Signal:3/5 Pin Signal In/Out



Housing Material

Housing: High temperature resistant alloy plastic+plastic handle



Rotating Gobo Wheel

7 gobos+1 open,High quality glass material, with "Insert and lock"system, easy to change the gobo

Gobo Inner Diameter16mm

Gobo Outer Diameter28mm

Gobo Thickness:1.1MM



Fixed Gobo Wheel

5 gobos + 3 open



Control And Program

4pcs Press Button

Control PanelLED LCD touch screen

Control Mode:DMX512,RDM,Auto and user program

DMX Channel:2 kind

Channel:20/25Channels



X Axis/Y Axis

XY MotorsSuper Silence,

Ultra fast 3-phase step motors

X Axis Movement Degree540°

Y Axis Movement Degree270°

X axis /Y axis position automatic correction if out of step



Working Temperature

Maximum ambient temperature:45°C

Minimum operating temperature:0°C

Maximum surface temperature:80°C

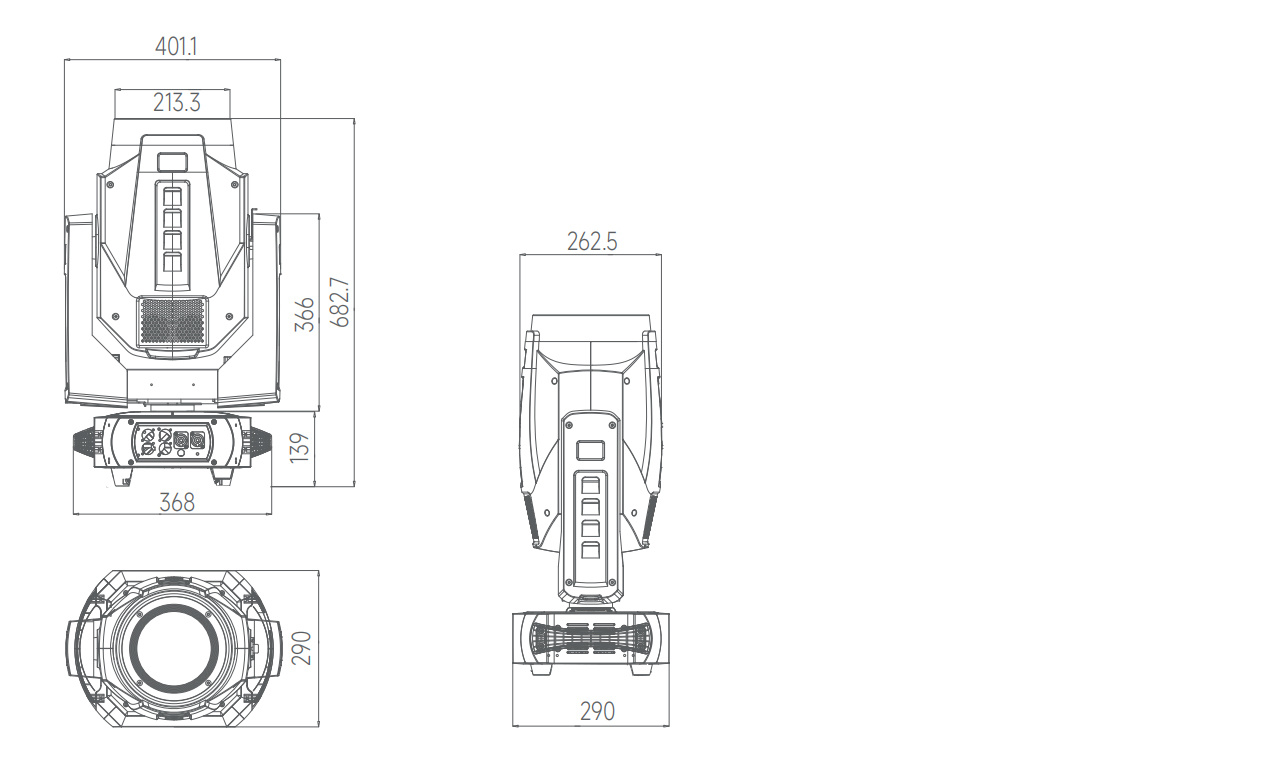

SIZE

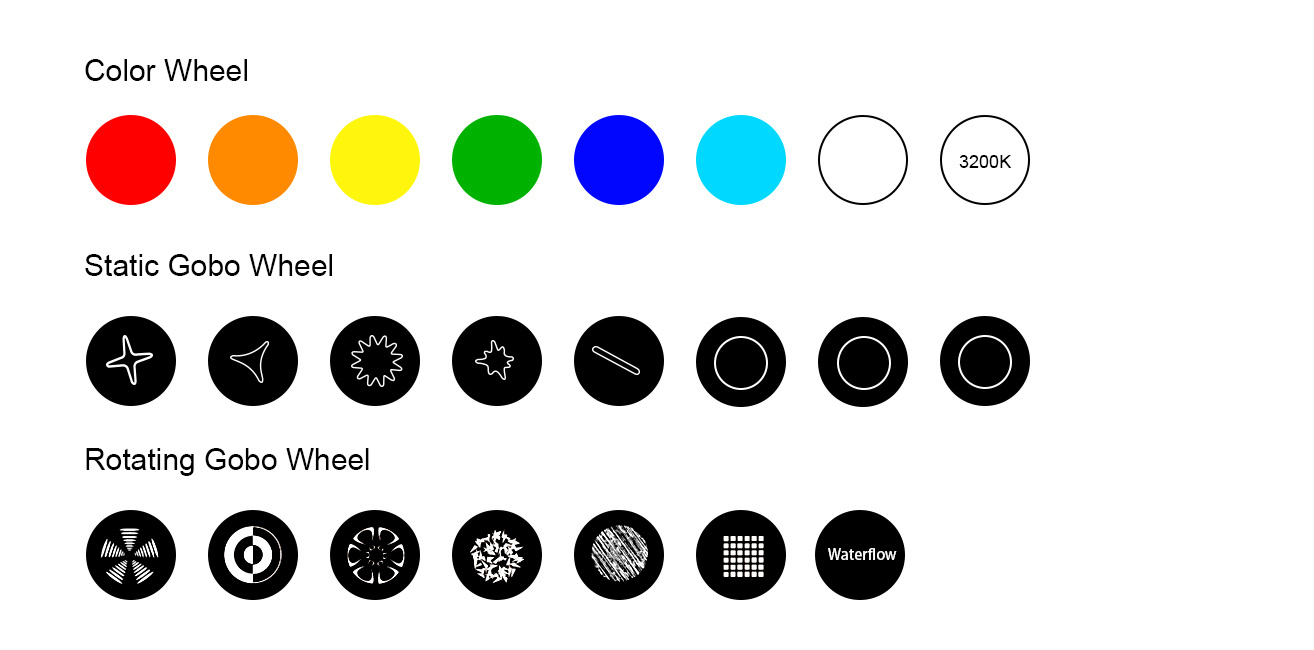

EFFECTS


PHOTOMETRICS




LUX


DOWNLOADS
