LY -Strobe 800
LY -Strobe 800
| Parameter
Model
LY -Strobe 800
Light source
48x20W Cool white led, 972x0.4W RGB led
Beam Angle:40 deg (CW),120 deg (RGB)
LED life expectancy: 50,000hrs
Movement
Resolution: 8-16 Bit
Tilt (Degrees): 200° Control
Control and Program
Display:OLED touch display
Protocol: DMX-512, RDM, Master/Slave, Manual
DMX Channel: 13CH / 17CH / 20CH / 27CH / 70CH/72CH/73CH
Firmware Upgrade:Firmware upgrade via DMX link
Cooling
Temperature controlled, overheating protection
Effects
24 x RGB / 8 x CW LED zones with individual control, outstanding color mixing effect
Dimmer: 0-100% electronic
Electrical and Connectors
Input voltage range: 100-240V~ 50/60Hz
Power consumption: 800W
Data IN/Out:3-pin XLR or 5-pin XLR
Power In/Out:Indoor power con
Fixture Specification
Fixture dimensions:
Height: 500mm (19.7")
Width: 140mm (5..5")
Depth: 350mm (13.8")
Net Weight: 10.8kg (23.8lbs)
Gross Weight: 11.2kg (24.7lbs)
Work environment
Maximum ambient temperature: 45°C
Maximum surface temperature: 60°C
Minimum operating temperature: 0°C
Protection Rating: IP20
Factory configuration
Digital User Manual
Power Cable, Signal Line, Omega-Bracket, Safety Rope

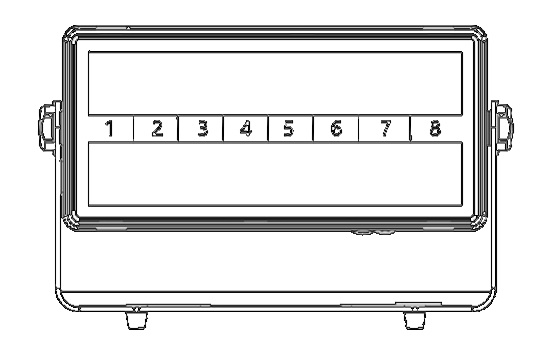

LED PIXEL ZONES
| Size
| Lux
| Effects
