HT-400L 400W LED Spot Moving Head Light IP65

HT-400L

The HT-400L is a high-performance LED engined spot moving head designed for professional lighting applications. Encased in a durable IP65-rated enclosure, this fixture is protected against dust, sand, moisture, and liquid, making it suitable for outdoor and challenging environments. Powered by a powerful 400W LED module with a long life expectancy of 20,000 hours, the HT-400L offers a range of features including an interchangeable glass gobo wheel with 7 gobos plus open, a color wheel with 7 colors plus open, a rotating prism, motorized focus, and atomization effect. The optical system of the HT-400L is designed for precision, featuring a 156mm frontal lens diameter and a variable beam angle range from 4° to 45°. Control and programming are intuitive with a 4-button touch panel, LCD display, and support for DMX512 and RDM protocols. The fixture offers 20 DMX channels, 16-bit pan/tilt resolution, and automatic Pan/Tilt position correction for accurate positioning. Additionally, the HT-400L features rotating gobos with high-precision glass gobos, adjustable-speed rotation in both directions, and an easy "SLOT & LOCK" system for gobo replacement. The color wheel includes 7 colors plus open for versatile color mixing capabilities.

Category

Outdoor LED Beam Spot Wash

Keyword:

head

power

pan

gobos

temperature

diameter

LED

IP65

Introduction

Functional indicator diagram

Download

Model
HT-400L

Light source
Light Sources: Powerful 400W LED engine
LED life expectancy: 20000 hours

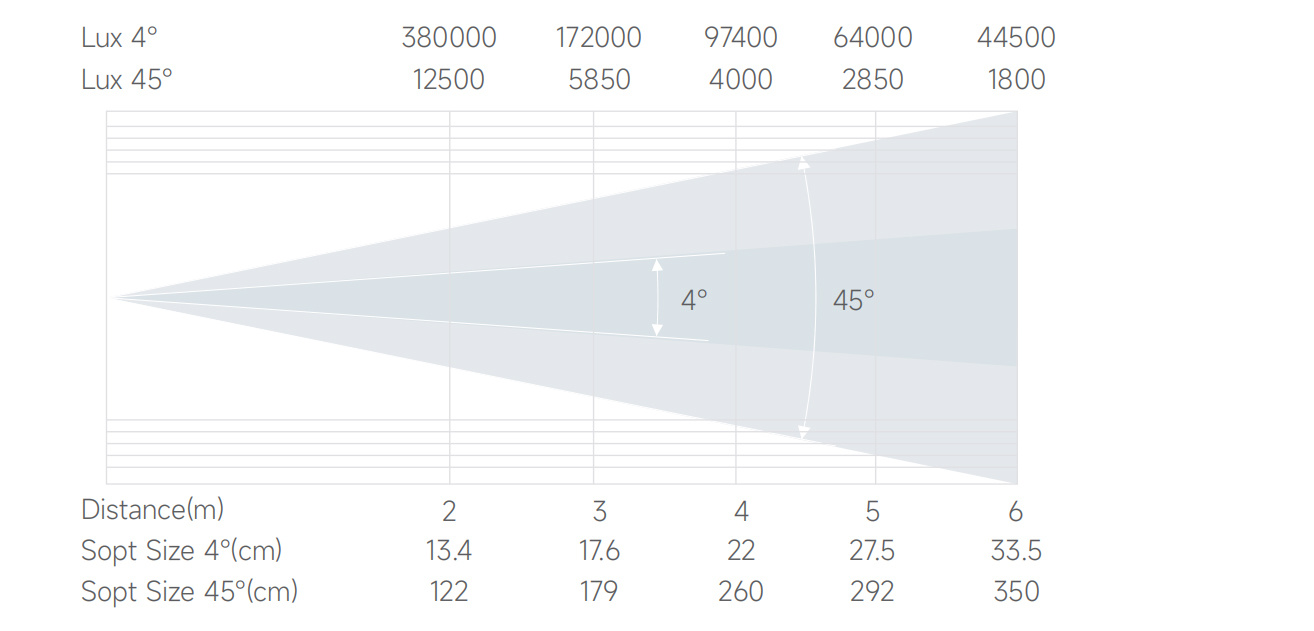

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 156 mm
Beam Angle: 4°-45°

Control and Program
o   4-buttons touch panel
o   Display: LCD display
o   Protocols: DMX512, RDM
o   DMX Channel: 20
o   Firmware Upgrade: Upgrade via DMX link
o   Pan/Tilt Resolution: 16 bit

PAN & TILT
o   Pan movement: 540°
o   Tilt movement: 270°
o   Automatic Pan/Tilt position correction

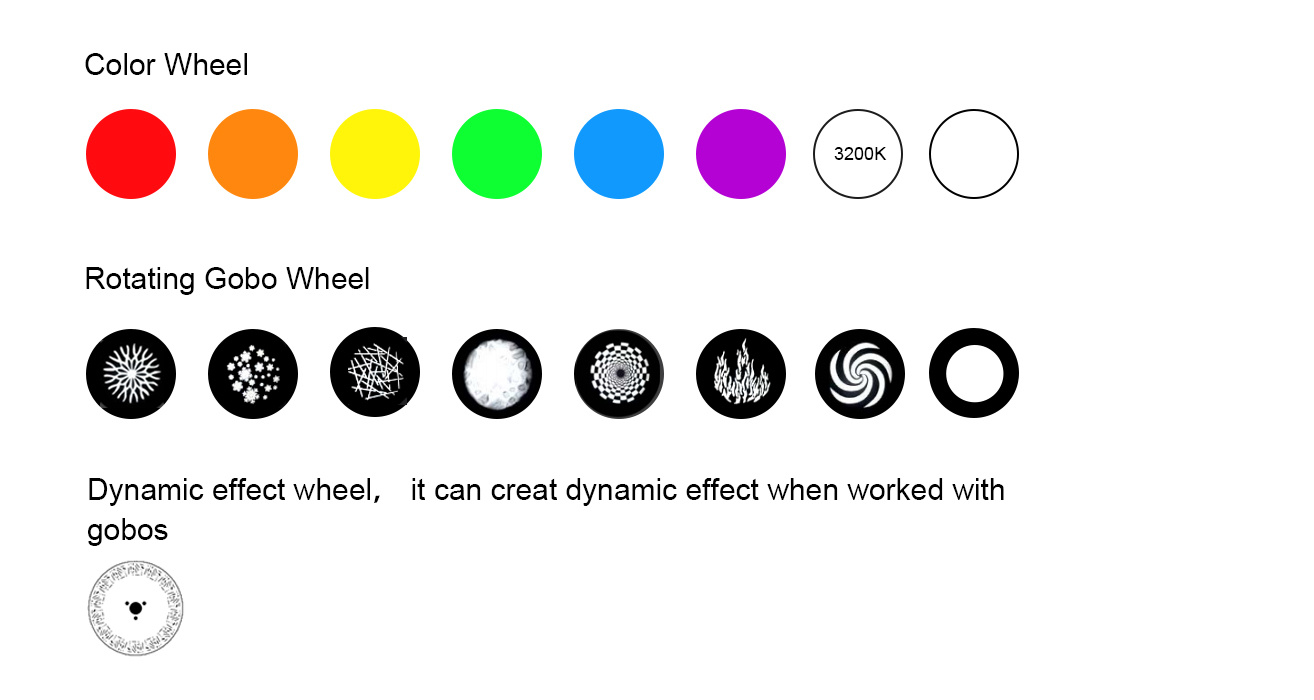

Rotating Gobos
o   7 Interchangeable high-precision glass gobos, plus open
o   Adjustable-speed rotating gobo in both directions
o   Image diameter: 18 mm
o   Outside diameter: 23 mm
o   Thickness: 1.1 mm
o   "SLOT & LOCK" system for easy gobo replacement

Color Wheel
o Color Wheel 1: 7 colors plus open

Electrical and Connectors
o   Power supply with electronic auto-ranging
o   Input voltage range: 100-220V~ 50/60Hz
o   Power consumption: 470 W
o   Power In/Out：Power Connector in/out
o   Data In/Out: 3pin or 5-pin XLR, True One connector

Fixture Specification
o   Fixture dimensions:
   Height: 419 mm (16.5")
   Width: 326 mm (12.8")
   Depth: 663 mm (26.1")
   Weight: 32.5 kg (94.4lbs)
o   Flight Case Dimensions:
   Height: 935 mm (36.8")
   Width: 465 mm (18.3")
   Depth: 605 mm (23.8")
   Weight: 71kg (32.2.lbs) (Single Loader Case)

Work environment
o   Maximum ambient temperature: 40°C
o   Maximum surface temperature: 65°C
o   Minimum operating temperature: -25°C
o   Protection Rating: IP65

Factory configuration
o   Digital User Manual
o   Power Cable
o   2x Fast-lock clamps for 50mm truss

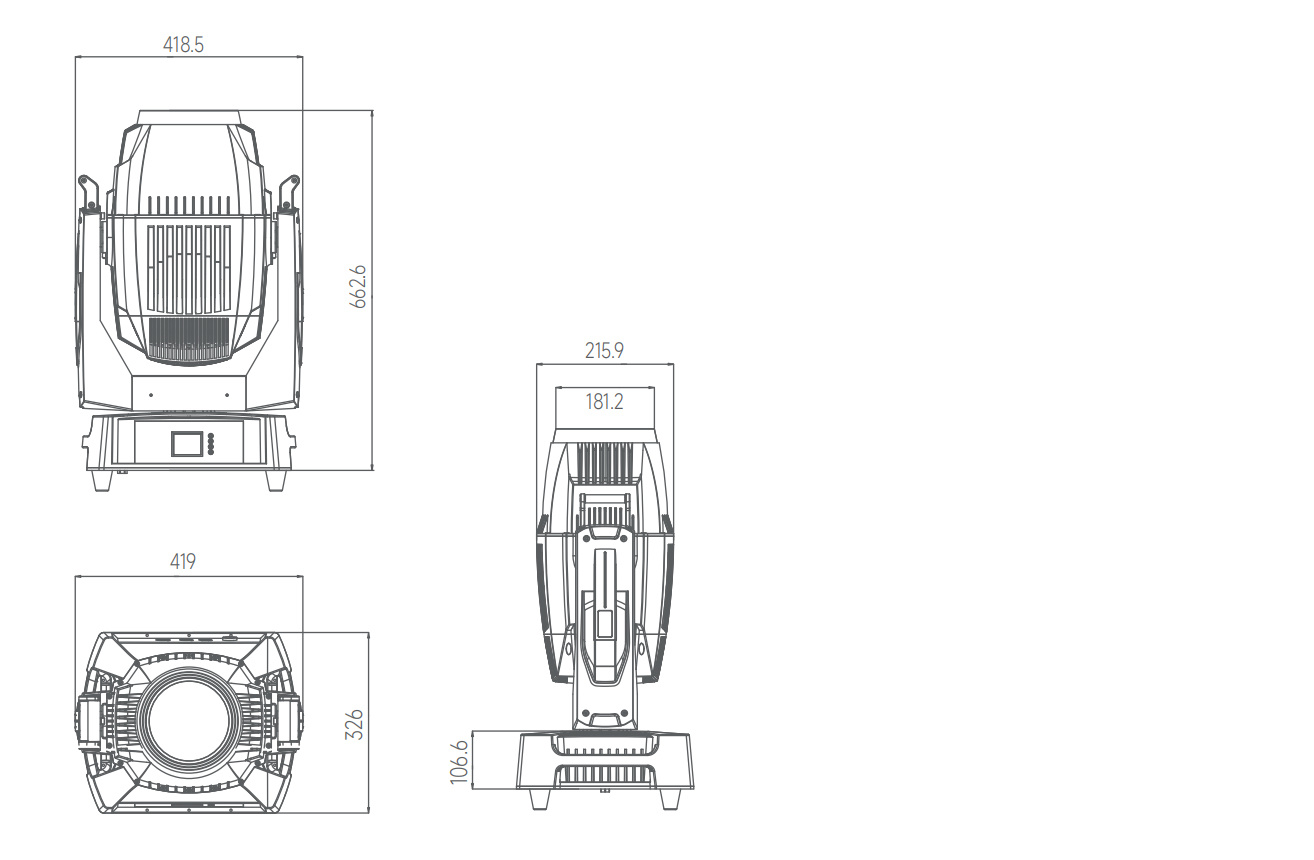

SIZE
