  • 380 BEAM MOVING HEAD LIGHT

  • Rambo 380
  • The product is a high-performance lighting fixture designed for professional use in events, concerts, theaters, and other entertainment settings. The light source is an OSRAM 371W lamp with lifespan of 15,00 hours, providing a bright and reliable illumination source. The fixture offers a narrow beam angle of 0-2.3°, producing a concentrated light output with high intensity. At a distance of 7 meters, it delivers an illuminance of 870,000lx, ensuring excellent visibility and coverage. It is fitted with two color wheels with 13 colors plus open and a rainbow color wheel. It also features 14 static gobos plus open, a motorized prism with 8+16 facets for beam shaping, motorized frost for diffusing light, linear focus control, dimmer from 0-100%, motorized shutter, and Move-in-Black functionality for seamless transitions. The fixture provides precise control options through DMX and RDM protocols, allowing users to create intricate lighting designs and effects with ease.
Keyword:
Rambo 380
Introduction

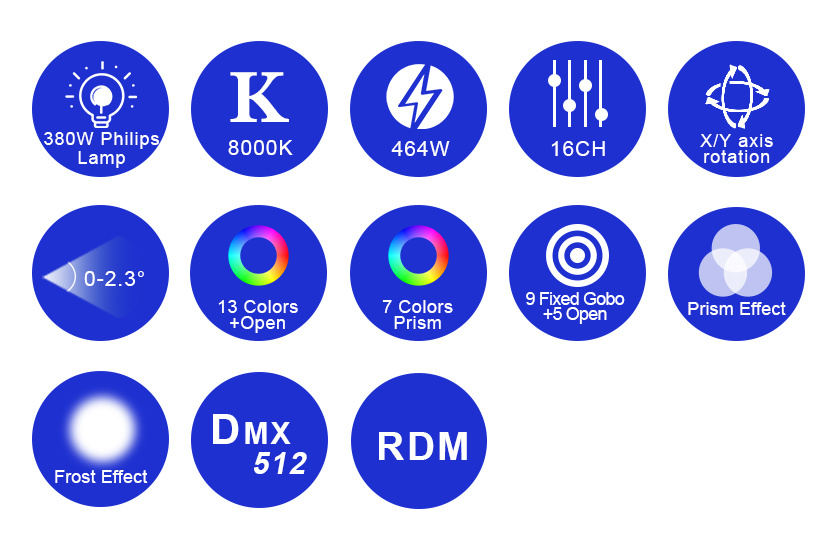

Functional indicator diagram
Download

OUTPUT

Light Sources: OSRAM 371W, 15,00 hours

CRI:80

Color temperate: 8000K

Beam Angle: 0-2.3°

Illuminance: 870,000lx@7m



DYNAMIC EFFECTS

Color Wheel 1: 13 colors + open

Color Wheel 2: Rainbow Color Wheel

Static Gobos: 14 + open

Prism: 8+16 Prism, motorized, rotating

Frost: Motorized

Focus: Linear Focus

Dimmer: 0-100% linear dimmer

Shutter/Strobe: Motorized

Move-in-Black: Yes

Pan/Tilt Range: 540°Pan 270°Tilt



CONTROL

Control Protocols: DMX, RDM

DMX Channel: 16



ELECTRONIC

Voltage Range: 100-240V, 50/60Hz

Power consumption: 464W



PHYSICAL

Dimensions: 361* 261* 527mm

Weight: 15.6kg (34.4lbs)



LISTINGS

Certification: CE & RoHS

Environment: IP20





SIZE

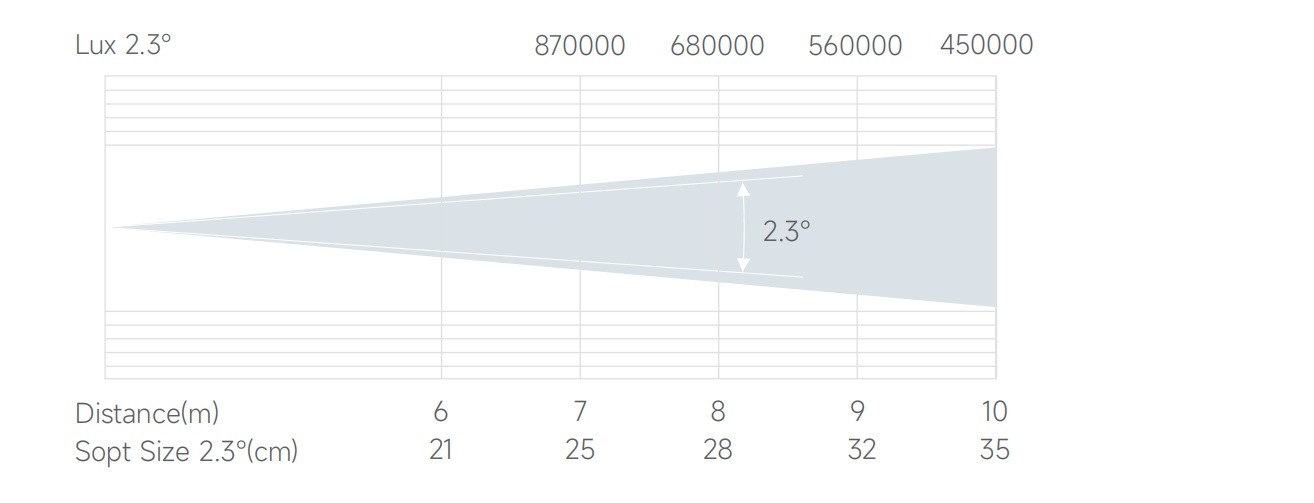

PHOTOMETRICS DIAGRAM 2.3°


STATIC GOBO WHEEL


DOWNLOADS

There is currently no content to display
Please add data record on website background.
