1000W Framing 4 IN 1 IP has super high and ultra-long range, framing system: 4 blades achieve fast and smooth framing, each blade cutting direction and angle can be independently controlled; the entire framing module can rotate ±90° 1000W Framing 4 IN 1 IP is widely used in outdoor large stadiums, large performances and other professional venues and all-weather environment.

Library Download

| Parameter

OUTPUT

Light Sources:Powerful 800W LED module

LED life expectancy:20,000 hours

Color temperate:7800K

Zoom Angle:5-50°



DYNAMIC EFFECTS

Color Wheel 1:6 colors+High CRl Filter+open

Color Wheel 2:Independent CMY&CTO System

Static Gobos:5+2 open

Rotating Gobos:6+open

Gobo Shake:Yes

Prism:4 Facet Prism, rotatable

Iris System:linear 5% to 100% spot zoom

Framing system: 4 blades, each with separate movement and full blackout, smooth with variable speed, fast for creating mid-air effects, the blades can be precisely positioned, ± 90° of the complete framing system, 180° rotation angle

2 Frost: 0%~100% linear change light frost and heavy frost

Animation Wheel:Independent animation wheel linear insertion,it can achieve infinite rotation effect

Frost:YES

Focus:YES

Dimmer:YES

Strobe:YES

Pan/Tilt Range:540°Pan 270°Tilt

Y axis infinite rotation(optional)



CONTROL

Control Protocols:DMX512,RDM

DMX Channel:65



ELECTRONIC

Voltage Range:100-240V, 50/60Hz

Power consumption:1200W



PHYSICAL

Dimensions:454*327*793mm

Weight:35kg



LISTINGS

Certification:CE & RoHS

Environment:IP65



| Size

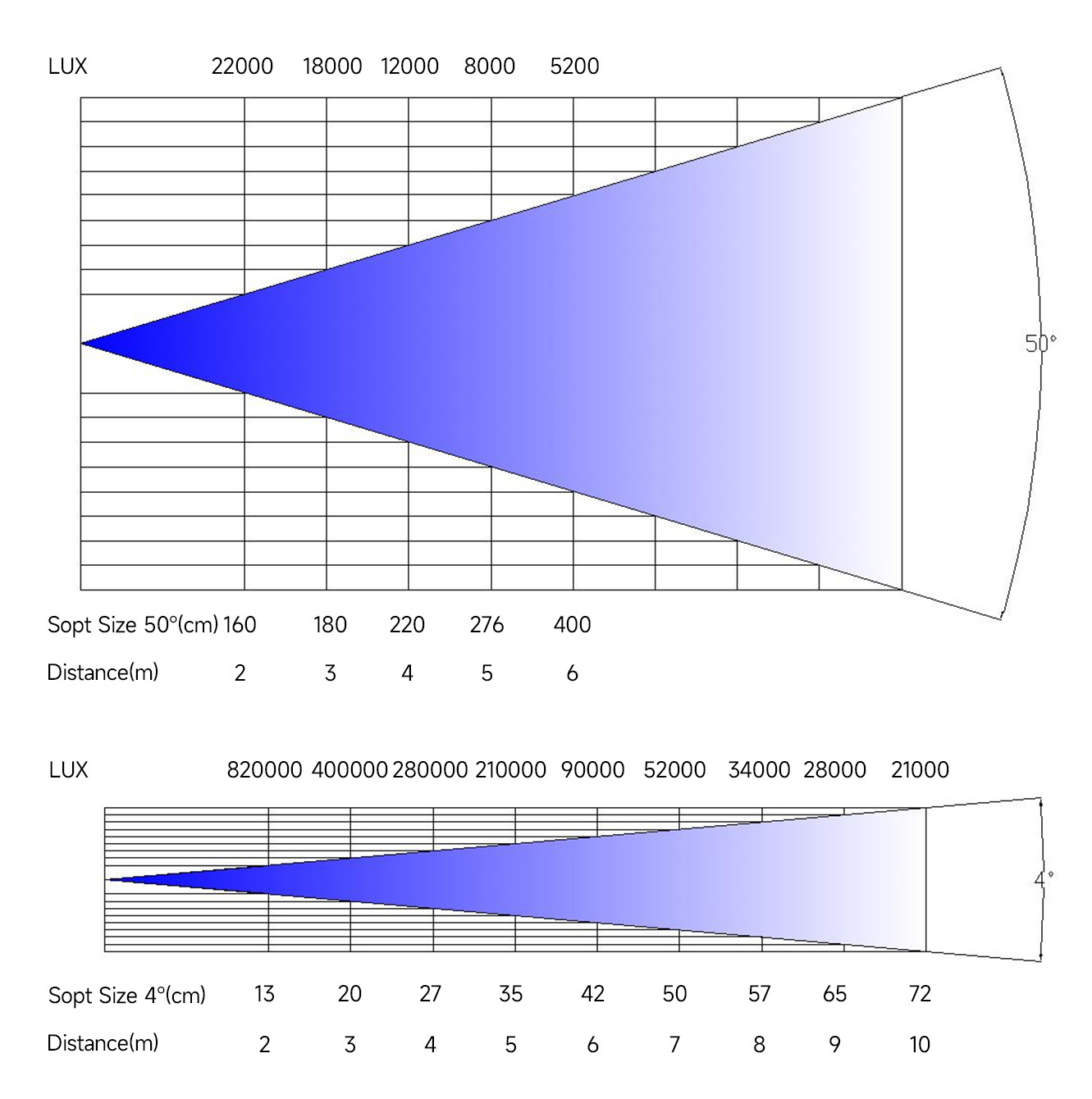

| Lux
