Model
HT-1000BSWZ  IP

Light source
Light Sources: Powerful 800W LED engine
LED life expectancy: 20000 hours

Optical system
Advanced optical design to ensure precise gobos and colors
Diameter of frontal lens: 145 mm
Beam Angle: 5.5-50°

Control and Program
o 4-buttons touch panel
o Display: LCD display
o Protocols: DMX512, RDM
o DMX Channel: 34
o Firmware Upgrade: Upgrade via DMX link
o Pan/Tilt Resolution: 16 bit

PAN & TILT
o Pan movement: 540°
o Tilt movement: 270°
o Automatic Pan/Tilt position correction

Rotating Gobos
o 6 Interchangeable high-precision glass gobos, plus open
o Adjustable-speed rotating gobo in both directions
o Image diameter: 23 mm
o Outside diameter: 28 mm
o Thickness: 1.1 mm
o Max. thickness: 4mm
o "SLOT & LOCK" system for easy gobo replacement

Static Gobos
o 6 high-precision gobos, plus 2 open

Framing System
o Shutter Blades: 4 Blades, each with separate movement and full blackout
o Movement: Smooth with variable speed, ultrafast for creating mid-air effects
o Positioning: The blades can be precisely positioned
o Rotation: +- 90° of the complete framing system

Color Wheel
o Color Wheel 1: 6 colors plus open
CMY Linear 100%
CTO adjustment

Electrical and Connectors
o Power supply with electronic auto-ranging
o Input voltage range: 100-220V~ 50/60Hz
o Power consumption: 850 W
o Power In/Out：Power Connector in/out
o Data In/Out: 3pin or 5-pin XLR, True One connector

Fixture Specification
Fixture dimensions:
Height: 743 mm (27.8")
Width: 326 mm (12.8")
Depth: 473 mm (18.6")
Weight: 42.84 kg (94.4lbs)
o Flight Case Dimensions:
Height: 820 mm (36.8")
Width: 400 mm (18.3")
Depth: 580 mm (23.8")
Weight: 71kg (32.2.lbs) (Single Loader Case)

Work environment
o Maximum ambient temperature: 40°C
o Maximum surface temperature: 65°C
o Minimum operating temperature: 0°C
o Protection Rating: IP65

Factory configuration
o Digital User Manual
o Power Cable
o 2x Fast-lock clamps for 50mm truss

SIZE

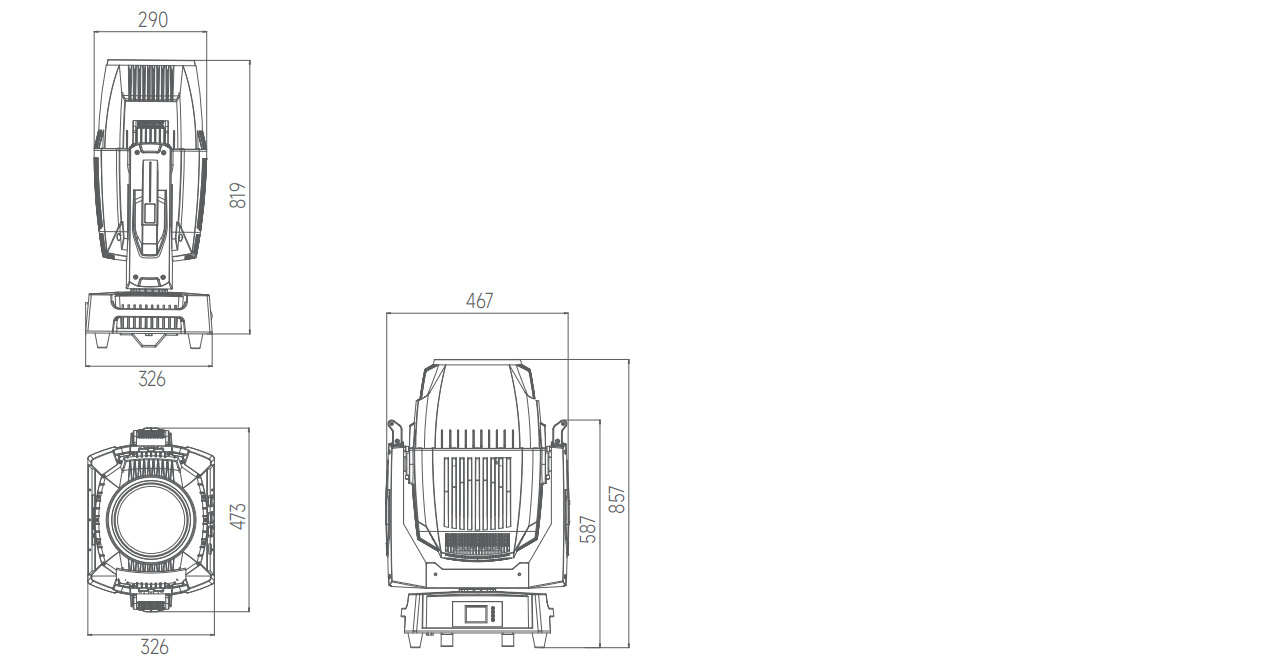

DIMENSION

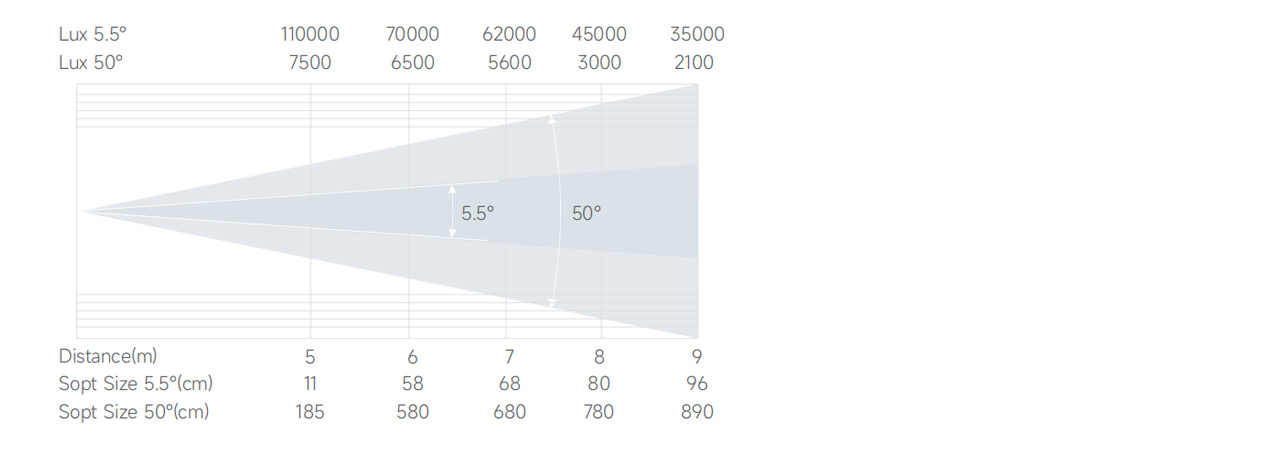

PHOTOMETRICS DIAGRAM 5.5° 50°

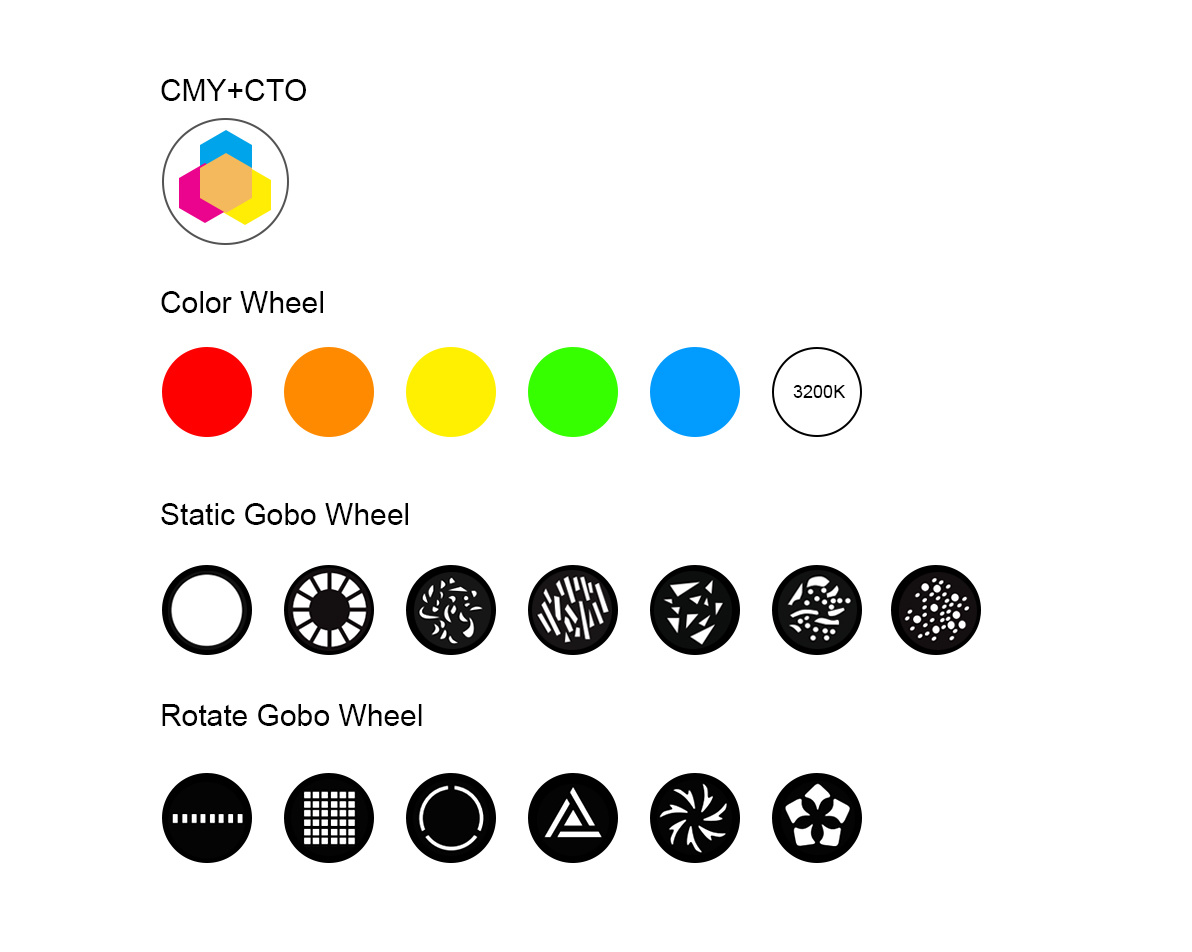

EFFECTS
